Product Advantage

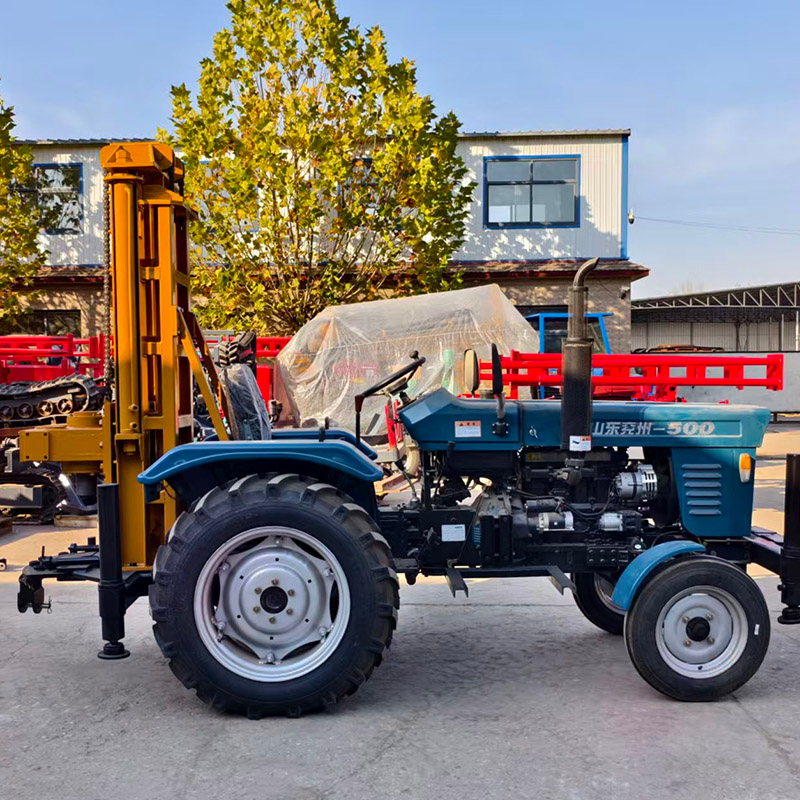

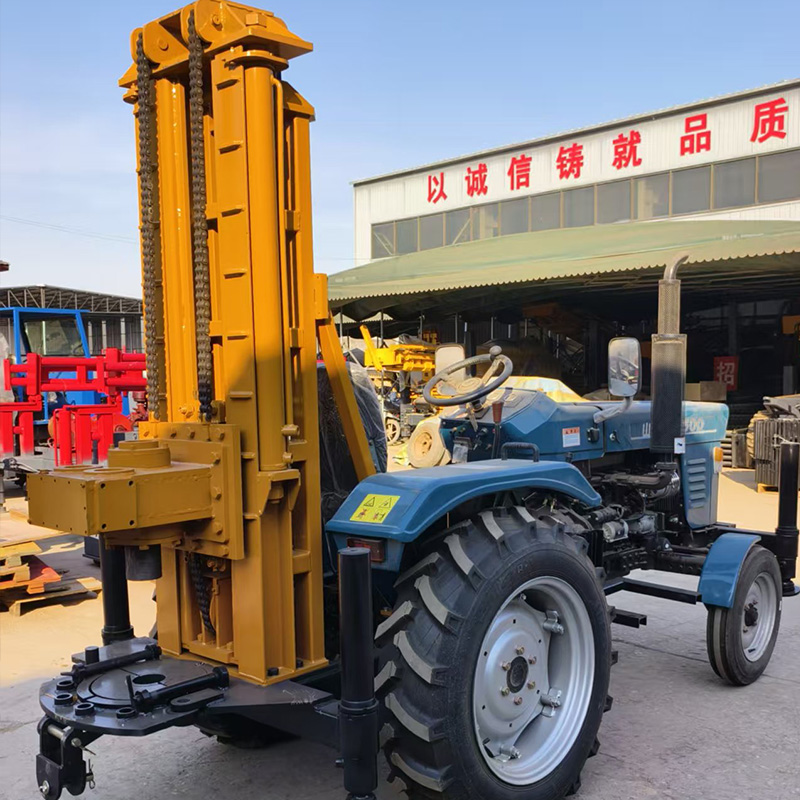

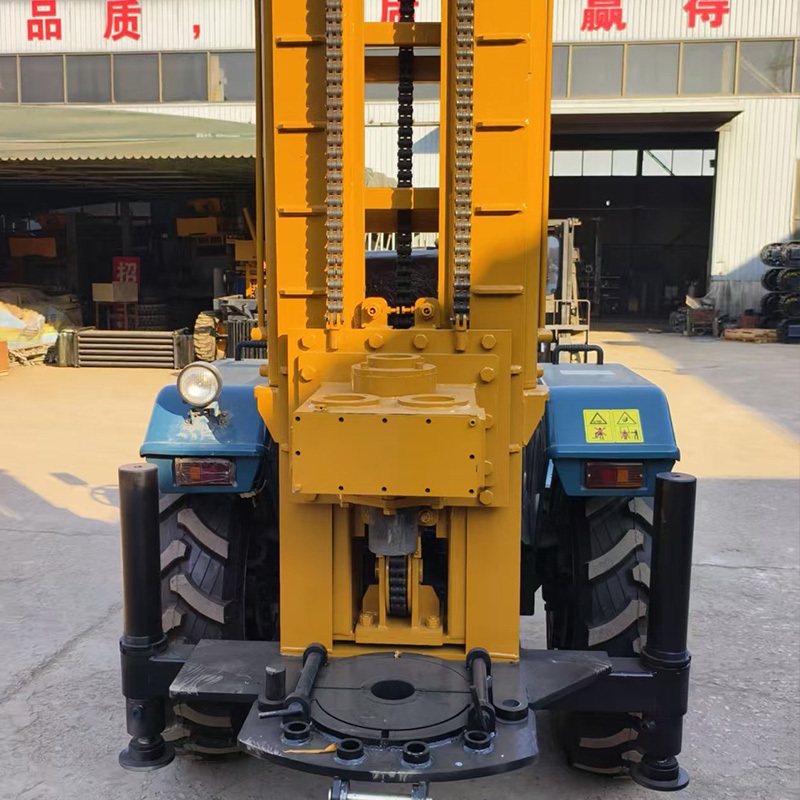

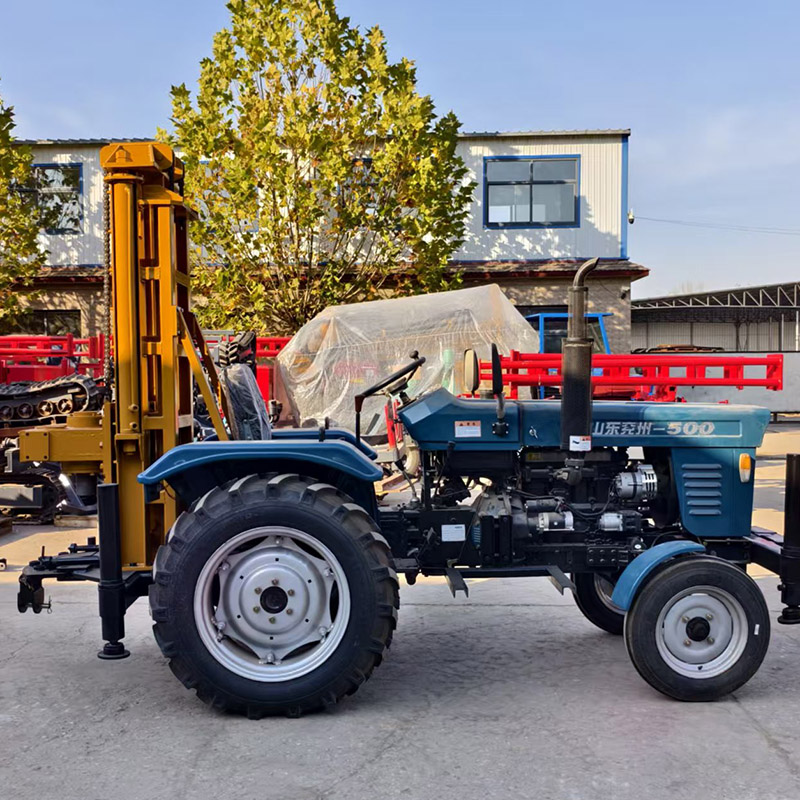

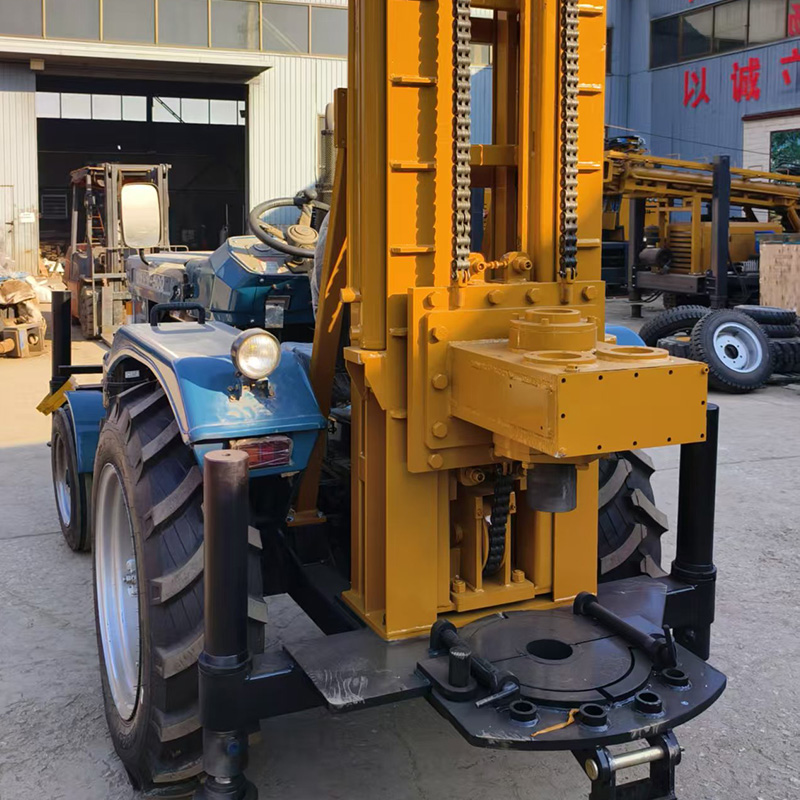

Tractor-Mounted Design — Two Uses, One Machine
The drilling unit mounts directly to the rear of the tractor, making full use of the tractor's existing power and drive system. This tractor mounted water well drilling rig allows users to avoid the cost of a separate self-propelled chassis, significantly reducing equipment investment while enabling both agricultural work and water well drilling with a tractor in one machine.
250m Drilling Depth, 105–350mm Borehole Coverage
Maximum drilling depth of 250m with borehole diameters from 105 to 350mm. This 250m water well drilling rig covers the mainstream needs of rural drinking water wells, irrigation wells, and small to medium-scale dewatering projects — broad application range.
16-Ton Lifting Capacity for Stable Deep-Hole Operation
A 16-ton (approx. 160KN) lifting force ensures stable raising and lowering of drill rods in 250m deep holes. Compatible with both 60mm and 76mm drill rods, it effectively handles complex formation conditions and reduces the risk of stuck pipe.

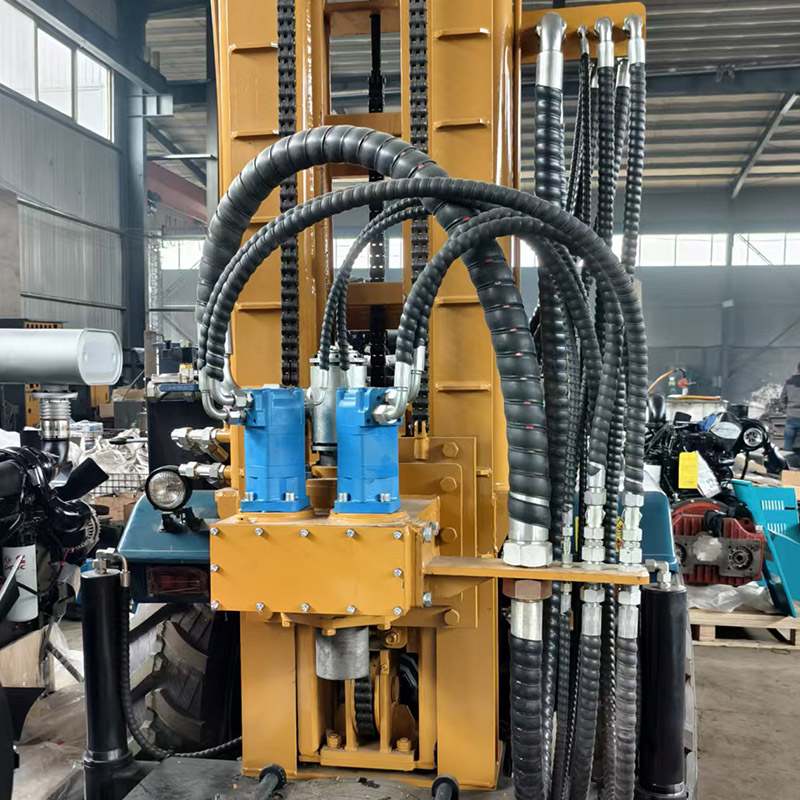

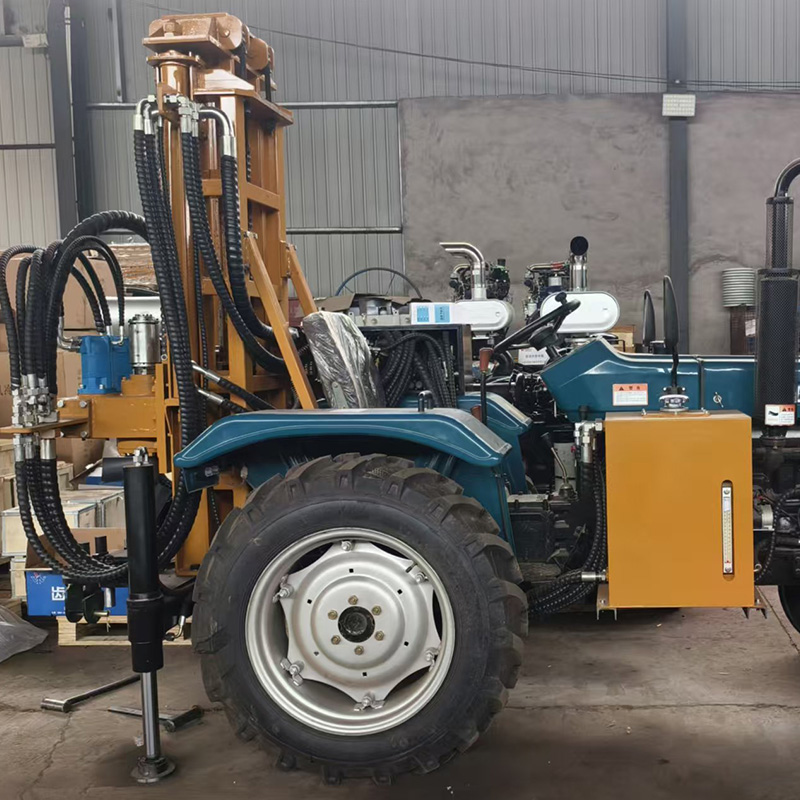

80HP Diesel Engine with Robust Hydraulic System
An 80HP diesel engine drives a powerful hydraulic system with ample power reserve, maintaining consistent drilling speed and efficiency even in harder formations.
Flexible Drill Rod Options for Multiple Scenarios
Drill rods available in 60mm or 76mm diameter, and 2m or 3m per section. Users can select the optimal configuration based on formation type, borehole diameter, and drilling depth — one tractor drilling machine covering multiple job scenarios.
Tractor-Based Travel for Efficient Site Relocation
Utilizing the tractor's own tire drive system, the rig moves quickly between road and field sites without additional transport vehicles. This water well drilling machine for sale is ideal for frequent multi-site operations, saving logistics costs and maximizing return on investment.
Technical Parameter
Name | Tractor-mounted water well drilling rig |
|---|
Drilling depth | 250 m |
|---|
Power | 80 HP |
|---|
Package dimensions | 3.5 x 1.8 x 2.2 m |
|---|
Drill rod diameter | 60 mm, 76 mm |
|---|
Drill rod length | 2 m, 3 m |
|---|
Drill rig weight | 4,500 kg |
|---|
Drilling diameter | 105–350 mm |
|---|
Warranty period | 1 year |
|---|
Lifting force | 16 tons |
|---|
After-sales service | Video tutorials provided; free training offered for the client's technical and sales teams. |
|---|
Product Uses
Rural Drinking Water & Irrigation Wells
The 250m drilling depth and 105–350mm borehole diameter meet the mainstream requirements for rural drinking water wells and agricultural irrigation wells. Traveling on the tractor enables quick relocation between farmlands and villages, improving construction efficiency.
Small to Medium-Scale Dewatering Wells
Suitable for dewatering well construction at construction sites, mines, and other small to medium-scale projects. The 16-ton lifting capacity paired with 76mm drill rods handles more complex formations, meeting the diameter and depth requirements of most dewatering wells.
Drilling Business Expansion for Existing Tractor Owners
Designed for farmers and construction teams who already own agricultural tractors - no additional chassis purchase needed to start water well drilling operations. A low-cost entry into the drilling market, enabling diversified equipment utilization.
FAQ
Q: Is this tractor water well drilling rig a split or integrated design? Can it be disassembled for transportation?
A: This is an integrated tractor-mounted water well drilling rig, with the drilling unit fixed to the tractor head and cannot be disassembled. The integrated structure requires no on-site assembly, enabling quick drilling startup upon reaching the site, ideal for emergency water supply projects in remote areas.
Q: What are the transportation specifications of this drilling rig? Which transportation method is suitable?
A: This compact tractor drilling rig has a package size of 3.5×1.8×2.2m and a total weight of 4500kg. It fits standard containers or flatbed trucks, requiring no additional protection during transportation, reducing cross-border logistics costs.
Q: What is the drilling capacity of this 80HP tractor drilling rig? Which scenarios is it suitable for?
A: This 80HP water well drilling rig has a maximum drilling depth of 250m, borehole diameter of 105-350mm, and 16-ton lifting capacity to handle complex formations. It is ideal for domestic water wells, small farm irrigation wells, and water supply projects in remote areas.
Q: What is the after-sales service and warranty policy for this drilling rig?
A: This tractor-mounted water well drilling rig comes with a 1-year full machine warranty, along with free video tutorials and operation training for your technical team. We also supply original 60/76mm drill pipes and other spare parts to ensure long-term stable operation.
