Product Advantage

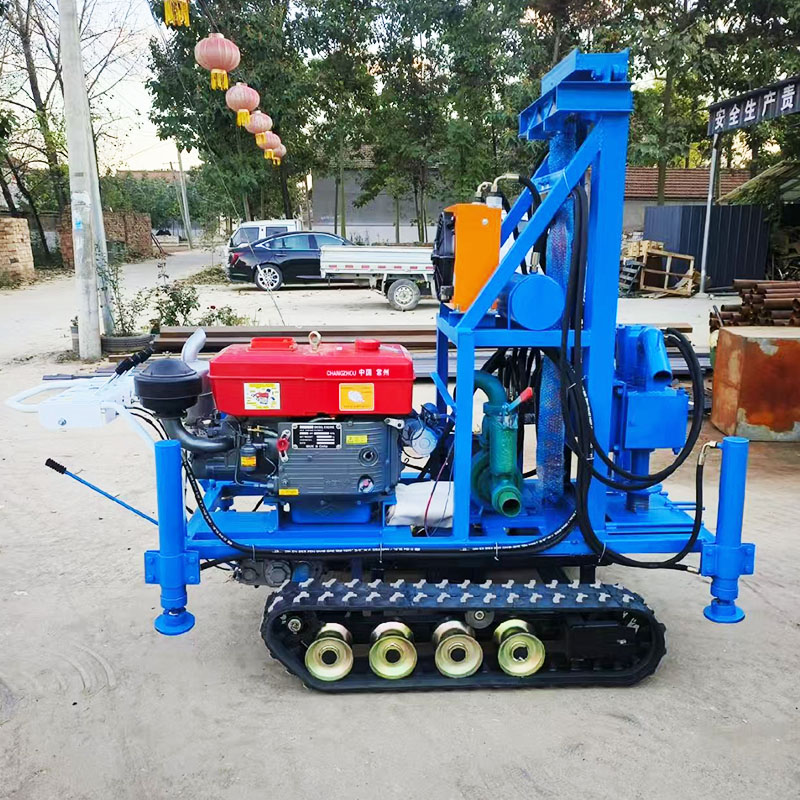

Crawler Undercarriage for All-Terrain Operation
The crawler chassis provides low ground pressure, enabling stable drilling on soft soil, muddy roads, and hilly slopes. This crawler water well drilling rig requires no additional road construction, reducing mobilization costs significantly.
22HP Diesel Engine, Upgradeable to 35HP
A standard 22HP diesel engine delivers reliable power with good fuel efficiency. A 35HP version is available upon request, making this diesel-powered drilling rig better suited for hard rock formations and intensive continuous drilling operations.
High-Efficiency Hydraulic Drive, 80r/min Forward & Reverse
Driven by a 400 mL/r hydraulic motor, the rotary table maintains a steady 80r/min in both directions. This hydraulic drilling machine delivers smooth and consistent rotation, improving drilling efficiency and reducing the risk of stuck pipe.
200m Drilling Depth, 100–300mm Borehole Coverage
Maximum drilling depth of 200m with borehole diameters ranging from 100 to 300mm. This 200m borehole drilling rig covers rural water supply wells, irrigation wells, and small dewatering projects — one rig, multiple applications.
Integrated Water Pump for Simultaneous Drilling & Flushing
Includes a water pump (100–150 m³/h flow, 9m head, 60mm outlet) that enables flushing and cuttings removal during drilling, improving well completion speed and reducing auxiliary steps.
Compact Design, Easy Transport & Relocation
Overall dimensions of 2100×900×1700mm make the rig road-transportable by standard trailer. As portable water well drilling equipment, its compact structure suits confined work sites and frequent site-to-site relocation, lowering logistics expenses.
Technical Parameters
Name | Specifications | Name | Specifications |
|---|
Drilling depth | 200m | Pump flow rate | 100-150 m3/h |
Hole opening diameter | 100–300mm | Pump head | 9m |
Rotary table speed | Forward: 80 rpm; Reverse: 80 rpm | Pump outlet diameter | 60mm |
Hoisting capacity | 20 kN | Drill rod diameter | 50mm |
Derrick working height | 2.8m | Drill rod length | 1.5m |
Hydraulic motor | 400 mL/r | Machine dimensions | 2100*900*1700m |
Diesel power | 22 HP (35 HP customizable) | | |
Product Uses
Here are three specific application scenarios of packaging machinery:
Rural Drinking Water Supply
Suitable for shallow groundwater extraction in rural and township areas. The 200m drilling depth meets the needs of most rural domestic water wells, providing safe and reliable drinking water sources for local communities.
Agricultural Irrigation Wells
Widely used in agricultural irrigation projects. The rig can efficiently drill irrigation wells and, combined with the integrated pump system, enables immediate water access after drilling — enhancing agricultural water security.
Small-Scale Dewatering & Geological Exploration
Applicable to construction site dewatering wells and small geological exploration boreholes. The 100–300mm borehole diameter meets technical requirements for most dewatering and sampling operations, while the compact size allows easy access to confined construction sites."
FAQ
Q: What terrain conditions is this rig suitable for?
A: The crawler-type undercarriage works well on soft soil, muddy roads, gravel ground, and hilly slopes. The wide track contact area provides low ground pressure, allowing stable operation even where regular vehicles cannot pass.
Q: The maximum drilling depth is 200m. What depth can it actually reach?
A: 200m is the maximum design depth. Actual depth depends on formation conditions — it can easily reach 200m in soil, sand, and soft rock layers, but may be less in hard rock. We recommend selecting the appropriate drilling method based on local geology. [Please confirm specific formation parameters]
Q: Can the diesel engine power be upgraded?
A: The standard engine is 22HP and can be upgraded to 35HP upon request, which is better suited for hard rock formations or intensive continuous operations. Please specify your preferred power configuration when ordering.
Q: Is the water pump included? What are its specifications?
A: Yes, one water pump is included — 100–150 m³/h flow rate, 9m head, and 60mm outlet diameter, sufficient for drilling flush and cuttings removal. Higher-capacity pumps are available upon inquiry.
Q: Is the rig easy to transport and set up on site?
A: Measuring 2100×900×1700mm, the rig is compact and can be transported by standard flatbed trailer without disassembling major components. Simple leveling at the job site is all that's needed before drilling, making site-to-site relocation quick and efficient."
