Product Advantage

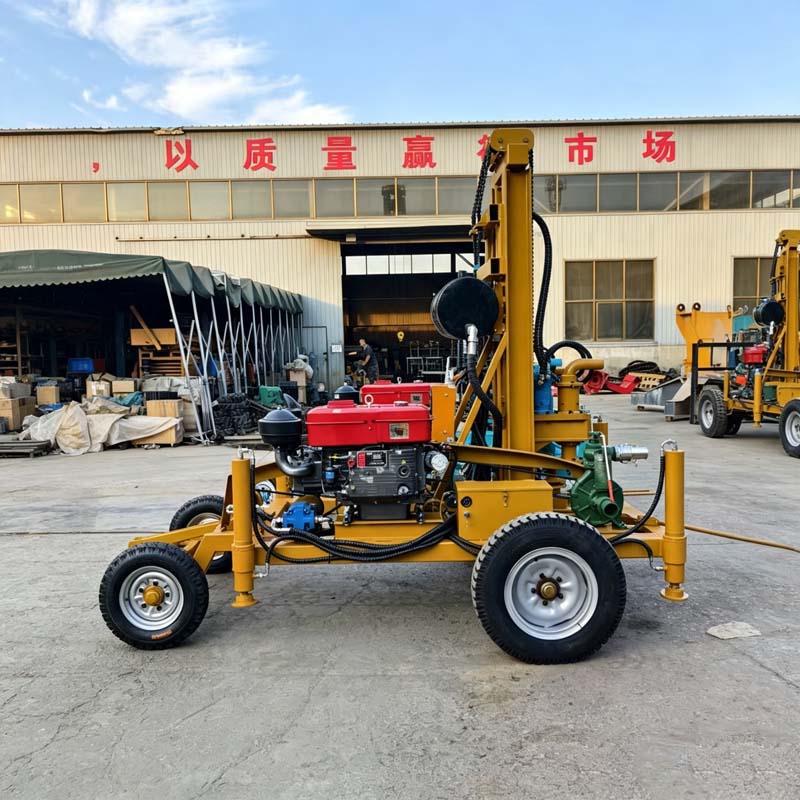

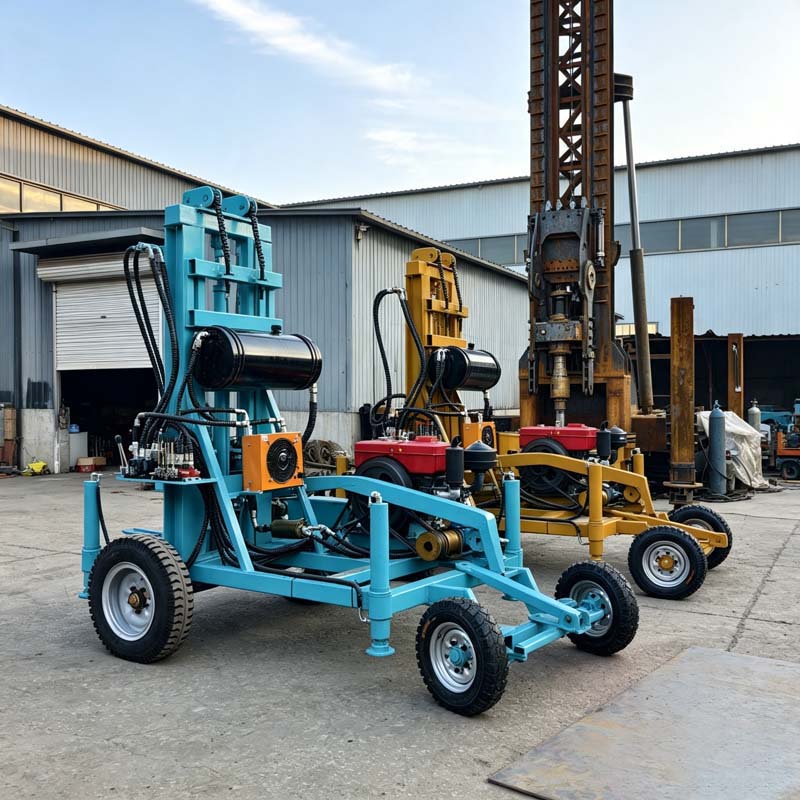

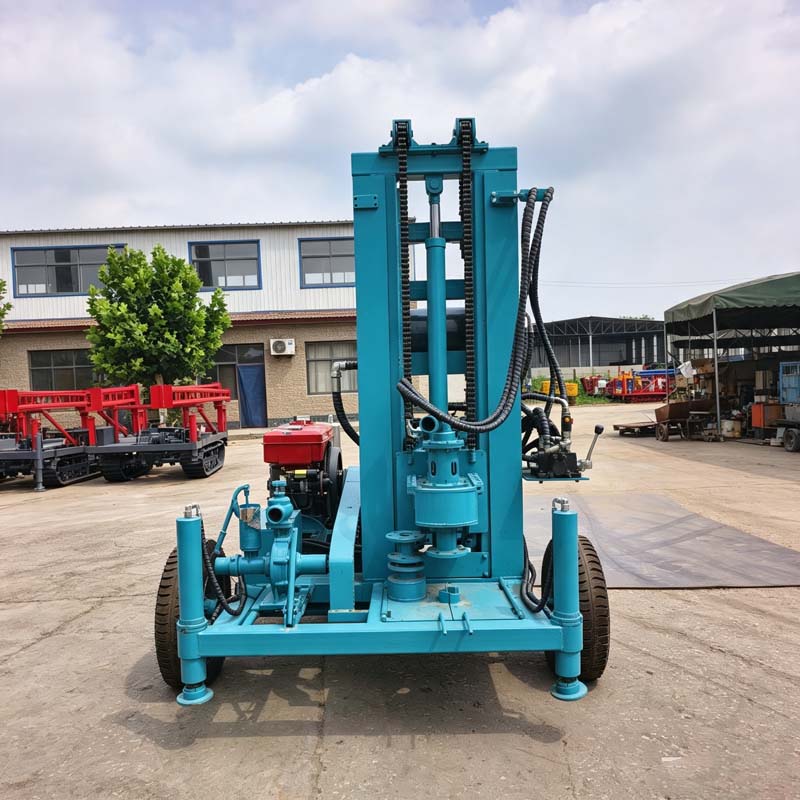

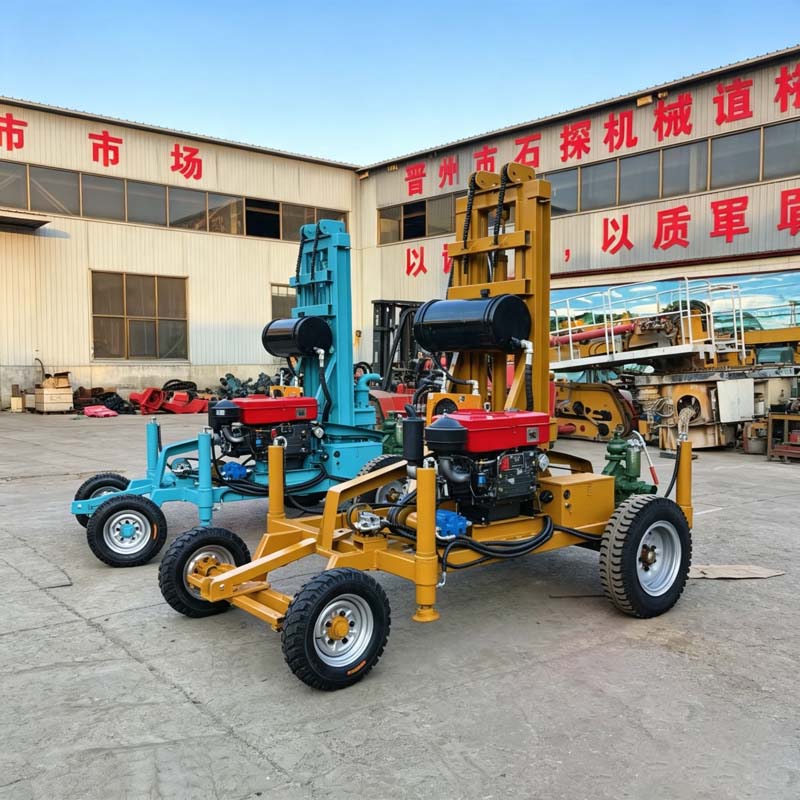

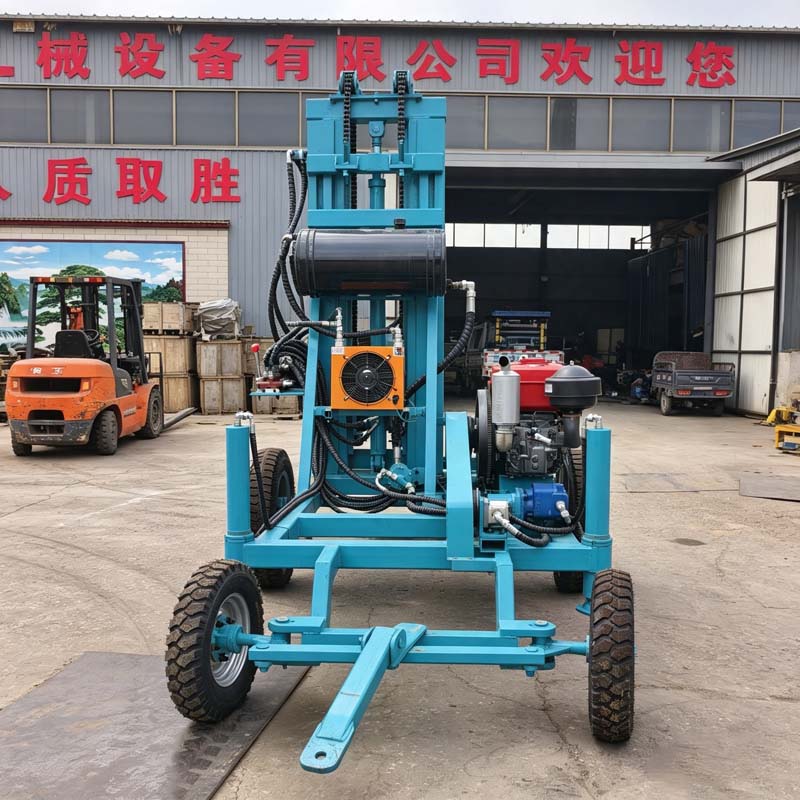

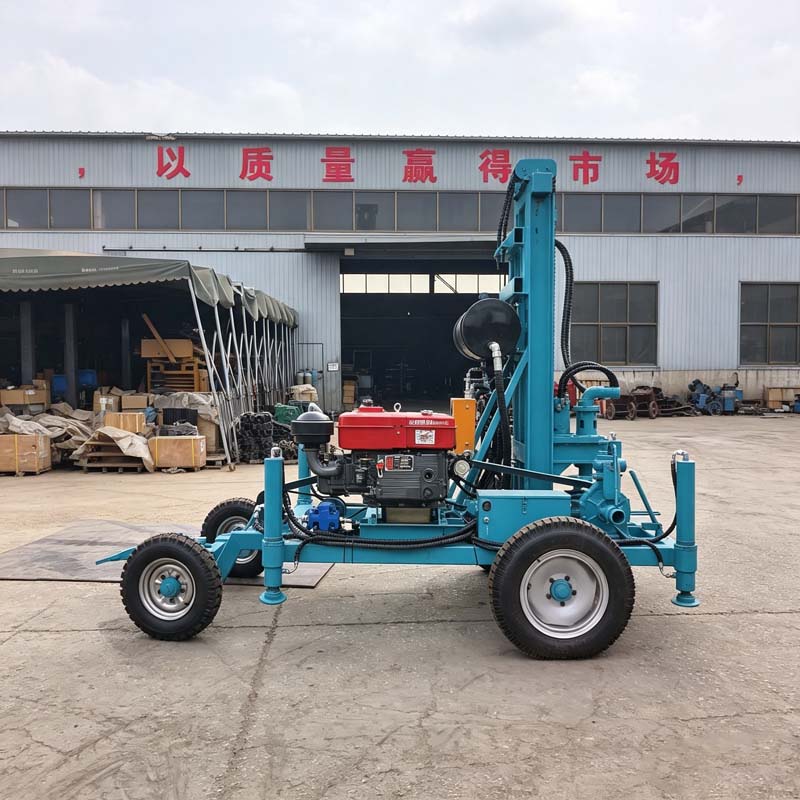

Four-Wheel Mobility for Easy Relocation
Equipped with pneumatic tires, this 200m water well drilling rig enables independent site relocation without trailers, significantly reducing mobilization costs and transportation time. As a highly mobile four-wheel drilling rig, it is ideal for projects requiring frequent position changes.
Customizable Power Options
Standard 22HP diesel engine upgradeable to 35HP based on customer requirements. This diesel water well drilling machine provides flexible power configuration to meet different geological conditions and drilling demands.
Stable Hydraulic Drive
The 400mL/r hydraulic motor provides consistent 80r/min rotary speed in both directions with 20KN lifting capacity, ensuring smooth and controlled drilling operations. This hydraulic rotary drilling rig delivers reliable performance across varied working conditions.
Efficient Mud Circulation
Integrated pump with 100-150m³/h flow rate and 9m head maintains optimal mud circulation, effectively improving drilling speed and extending drill bit service life.
Compact Footprint
Overall dimensions of 3110×1800×2520mm allow operation in confined spaces with minimal transport and storage requirements. This portable borehole drilling equipment offers flexible maneuverability across various job sites.
Technical Parameters
Name | Specifications | Name | Specifications |
|---|
Drilling depth | 200m | Pump flow rate | 100-150 m³/h |
Hole opening diameter | 100–300mm | Pump head | 80m |
Rotary table speed | Forward: 80 rpm; Reverse: 80 rpm | Pump outlet diameter | 60mm |
Hoisting capacity | 20 kN | Drill rod diameter | 50mm/60mm |
Derrick working height | 2.8m | Drill rod length | 1.5m/2m |
Hydraulic motor | 400 mL/r | Machine dimensions | 3110*1800*2520mm |
Diesel power | 22 HP (35 HP customizable) | | |
Product Uses
"Here are three specific application scenarios of packaging machinery:
1.Agricultural Irrigation Wells
200m drilling depth meets farmland irrigation needs, with four-wheel design enabling flexible relocation between plots to help farmers establish reliable water sources for crop growth and agricultural productivity.
2.Rural Domestic Water Supply
100-300mm borehole diameter accommodates household or village centralized water supply requirements, with straightforward operation and easy maintenance suitable for rural construction conditions and local water needs.
3.Small-Scale Engineering Water Supply
Suitable for water well drilling at construction sites, temporary camps, and small processing facilities, with rapid deployment capability to timely meet temporary water needs and ensure project progress without delays."
FAQ
Q: What geological conditions is this rig suitable for?
A: Suitable for soil, sand, and soft rock formations. For hard rock conditions, please contact us to confirm compatibility before ordering.
Q: How to choose between 22HP and 35HP?
A: 22HP suits standard geological conditions. For harder formations or higher drilling efficiency, we recommend the 35HP custom version for more powerful performance.
Q: How is the rig transported and installed?
A: The 3110×1800×2520mm frame fits standard container shipping. Simply unfold the mast on-site — no complex setup required. We provide operation manuals and remote technical support.
Q: Are drill rod spare parts easy to source?
A: The rig uses industry-standard 50mm/60mm drill rods with wide market availability. We supply full sets of original spare parts. Contact us for a detailed parts list.
Q: What is the warranty period?
A: We offer 1 year warranty coverage on core components, with lifetime technical support and spare parts supply for long-term operational stability.
