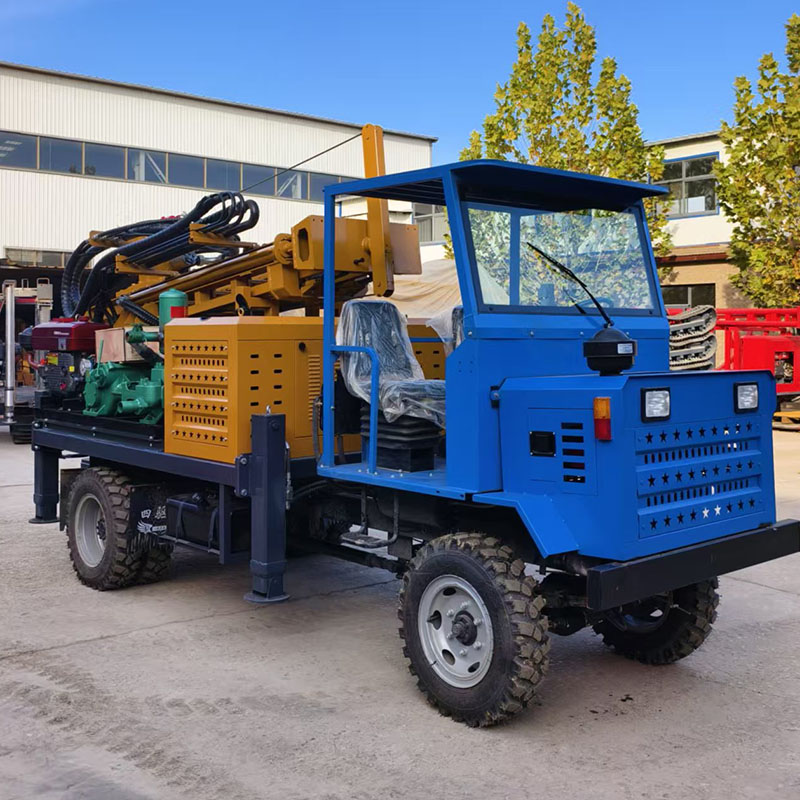

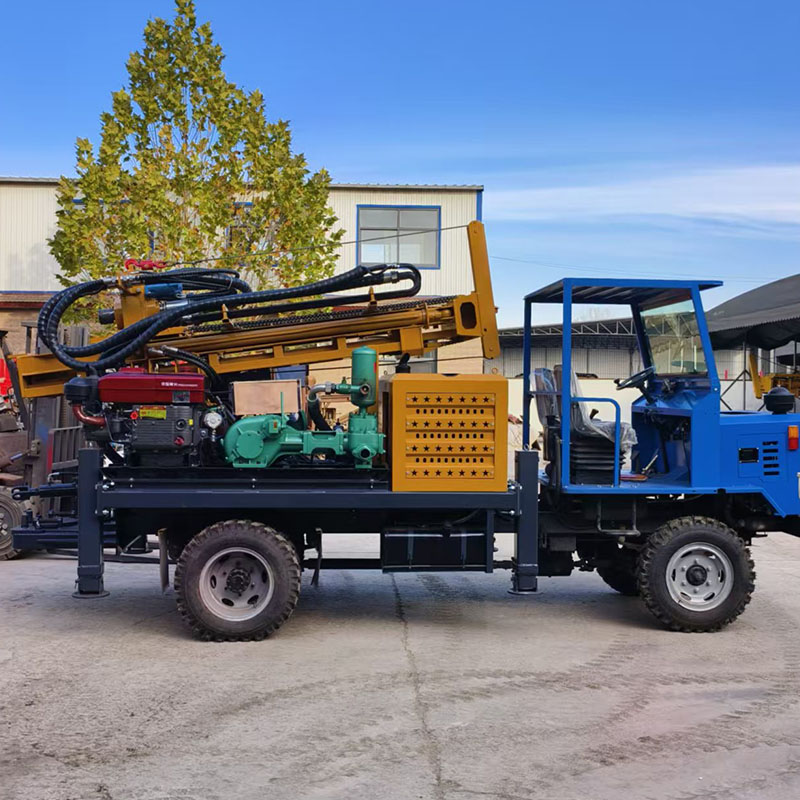

Custom Wheeled Chassis — Self-Propelled Road Travel
Built on a four-wheel wheeled engineering undercarriage, the rig can drive itself to job sites without the need for flatbed trailer transport. This self-propelled water well drilling rig significantly cuts logistics costs and time for cross-regional relocation — ideal for multi-area, long-distance projects.

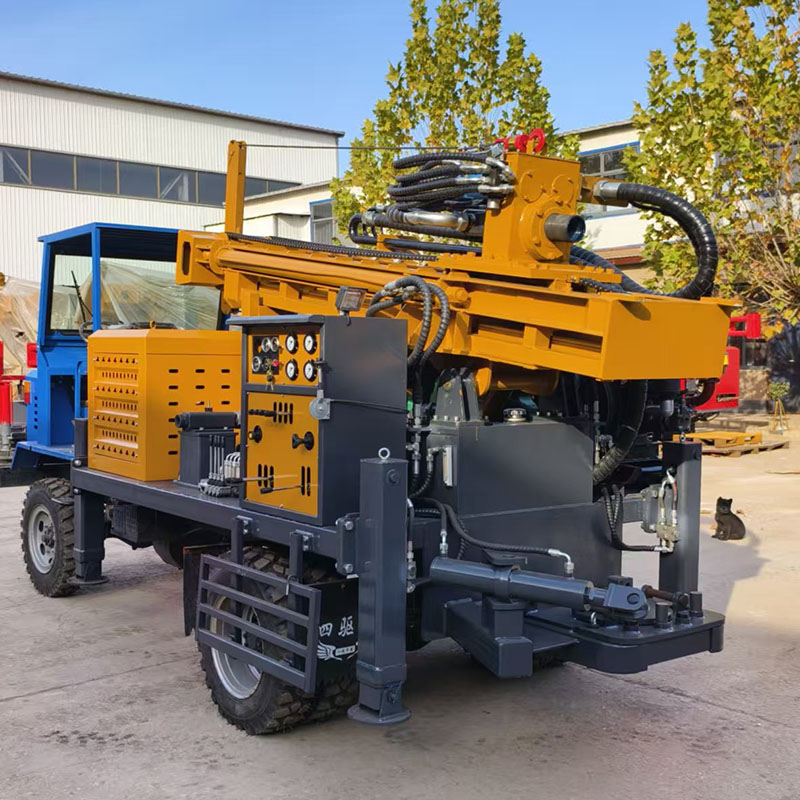

300m Drilling Depth, 18-Ton Lifting Capacity for Deep Hard Rock
Maximum drilling depth of 300m with an 18-ton (approx. 180KN) lifting capacity — among the higher configurations in its class. This 300m hard rock water well drilling rig, paired with 76mm drill rods, effectively handles deep holes and hard rock formations with stable and reliable performance.

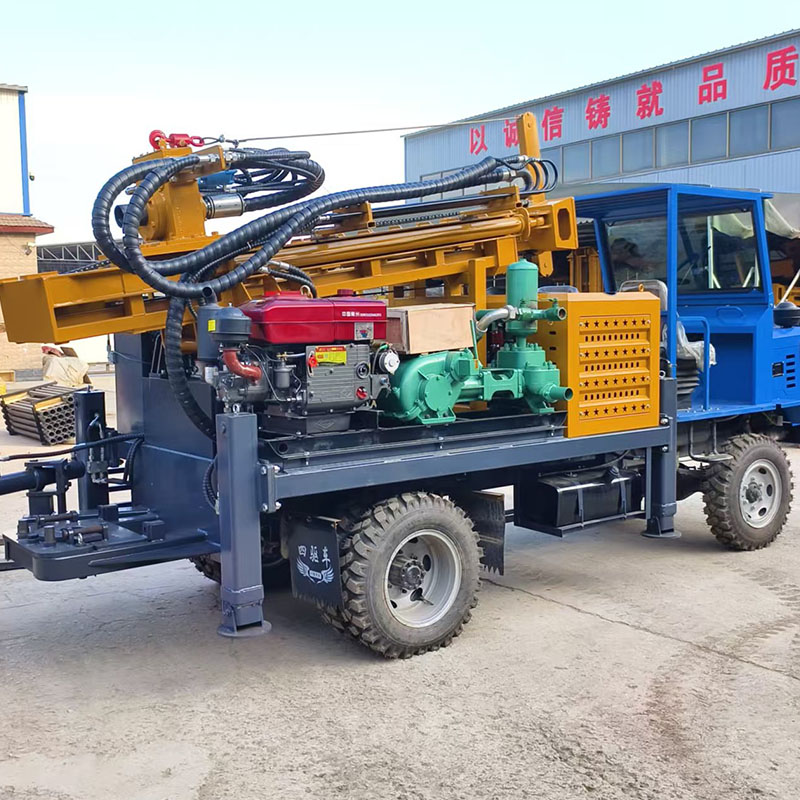

65KW Diesel Engine with Ample Hydraulic Power
A 65KW diesel engine drives a robust hydraulic system with sufficient power reserve, maintaining consistent output during deep-hole drilling and hard rock operations — ensuring drilling efficiency and equipment longevity.
Enclosed Cab for Comfortable Operation & Clear Visibility
Features an enclosed cab that provides operators with a sheltered working environment against sun and rain, with wide visibility that reduces fatigue during extended operations and improves both construction safety and operational precision. This cab drilling rig design sets it apart in its class for operator comfort.
76mm Drill Rods with Flexible 2m / 3m Configuration
Standard 76mm diameter drill rods available in 2m or 3m sections. 2m suits confined spaces and frequent assembly scenarios; 3m reduces connection cycles for higher efficiency. Users can choose based on project requirements.
105–350mm Borehole Coverage — One Rig, Multiple Uses
Borehole diameter coverage from 105 to 350mm handles everything from small-diameter rural drinking water wells to large-diameter engineering dewatering wells. As a high-capacity drilling equipment solution, it delivers broad application range that improves equipment utilization and return on investment.
Name | Wheeled-chassis water well drilling rig |
|---|---|
Drilling depth | 300 m |
Power | 65 kW |
Package dimensions | 5.8 × 2 × 2.2 m |
Drill rod diameter | 76 mm |
Drill rod length | 2 m, 3 m |
Drill rig weight | 5,500 kg |
Drilling diameter | 105–350 mm |
Warranty period | 1 year |
Lifting force | 18 tons |
After-sales service | Video tutorials provided; free training offered for the client's technical and sales teams. |
Large-Scale Deep Water Well Projects
The 300m drilling depth and 18-ton lifting capacity meet the requirements for deep water wells serving centralized town water supply, industrial parks, and large residential communities. The 105–350mm borehole range supports various well completion methods — suitable for professional drilling contractors handling large-scale projects.
Cross-Regional Drilling Contracting
The wheeled chassis allows self-propelled road travel, enabling cross-regional site relocation without additional transport vehicles. Especially suitable for drilling contractors who frequently move between different areas — significantly reducing logistics costs and scheduling complexity.
Deep-Hole Drilling in Hard Rock Formations
The 65KW engine paired with 18-ton lifting capacity and 76mm drill rods effectively handles deep-hole drilling in granite and other hard rock formations — applicable to water well projects in mountainous areas, mining regions, and other geologically complex sites.
Q: Can this rig drive on public roads? Does it require a special license or registration?
A: The rig features a wheeled chassis designed for road travel. However, specific road-use requirements (such as registration, driver's license, and speed limits) vary by country and local traffic regulations. We recommend confirming local requirements before purchasing - we can provide vehicle certification documents to assist with the process. [Please supplement with specific vehicle qualification details]
Q: Is the cab enclosed? Does it have air conditioning?
A: The rig is equipped with an enclosed cab that provides operators with a sheltered working environment against sun and rain. Air conditioning availability may vary across different custom versions. [Please confirm whether AC is standard based on actual configuration; if not, note "optional"]
Q: At 300m maximum depth, what can it actually reach in hard rock?
A: 300m is the maximum design depth. Actual depth depends on formation conditions — it can approach or reach 300m in soil, sand, and soft rock layers, but will be less in granite and other hard rock formations. We recommend reviewing the geological report before construction and selecting appropriate drilling methods and bits.
Q: Is 76mm drill rod standard? Can other specifications be used?
A: The rig comes standard with 76mm diameter drill rods, available in 2m or 3m sections. The 76mm rods offer better rigidity for deep-hole and large-diameter drilling. If your project requires different drill rod specifications, please consult us when ordering — we can provide customized solutions based on actual needs.
Q: At 5500kg, is transport and relocation convenient?
A: The rig can drive itself to nearby job sites, making short-distance relocation very convenient. For long-distance transport, it can be carried by flatbed trailer — 5500kg is within the capacity range of standard heavy-duty transport vehicles. Packing dimensions of 5.8×2×2.2m make transport arrangements relatively straightforward.
