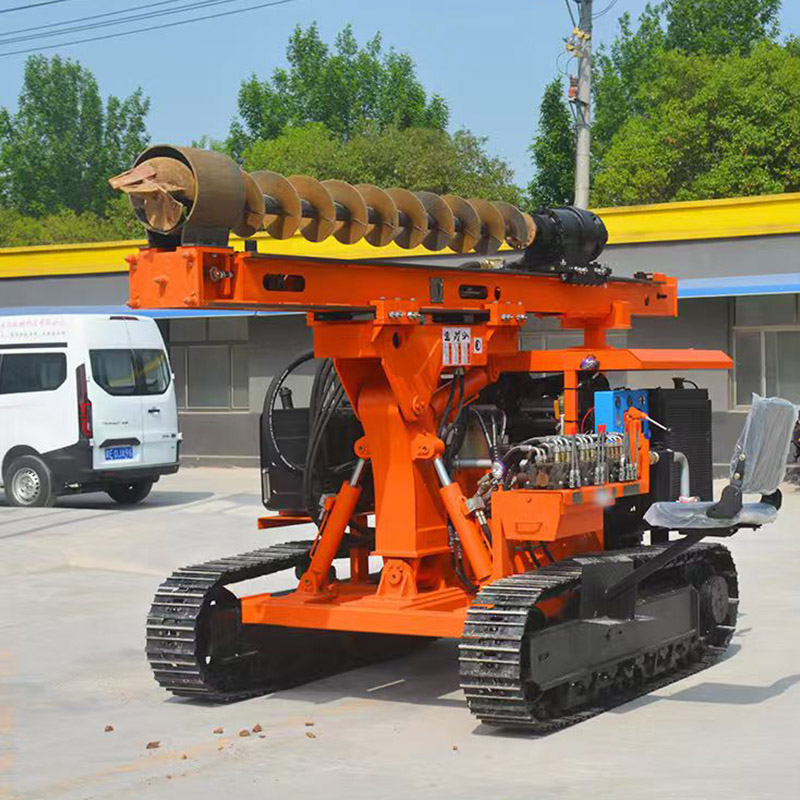

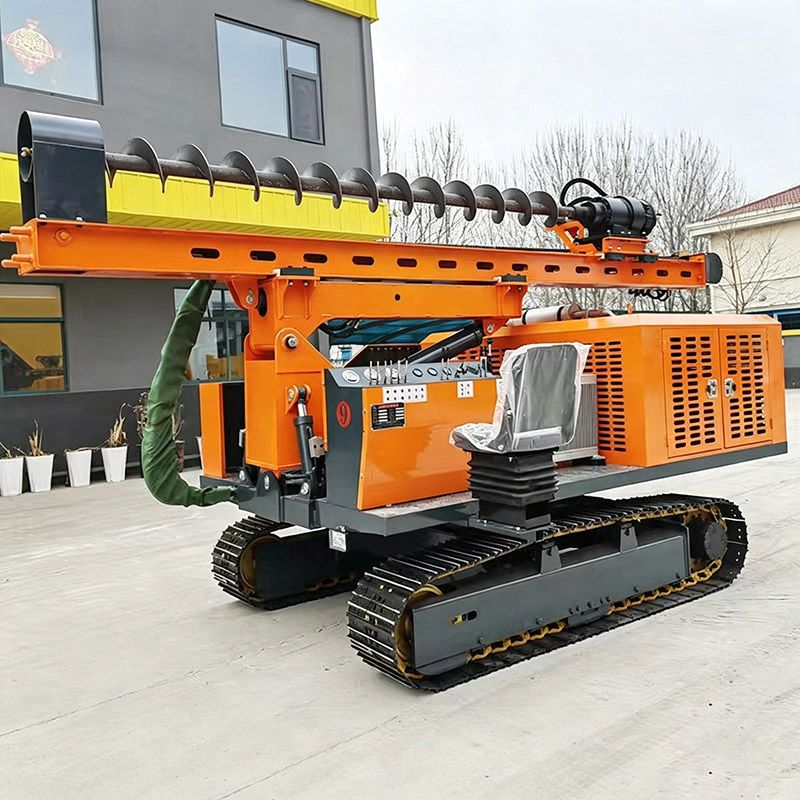

132kW Cummins Power, 9000N·m Ultra-High Torque
Equipped with a 132kW Cummins electric-start engine (24V) and imported variable piston pump, the power head torque reaches 9000N·m. This high torque solar pile driver supports φ350-500mm large boreholes and 12-18m deep drilling, easily overcoming hard rock formations in large solar power stations for efficient deep pile construction.
Optional Hydraulic Impact Hammer, Hard Rock Formation Expert
Optional hydraulic impact hammer function designed for hard rock and frozen soil layers. Through impact + rotary composite operation, this solar pile driver with hydraulic hammer greatly improves hard rock drilling efficiency, solves deep pile construction problems in extreme geological conditions, and provides full-geological solutions for large solar projects.
Reinforced Chassis + 30° Climbing Ability, Stable Heavy Load Operation
Reinforced X-frame chassis with 3200mm track ground contact length, 600mm mine-grade steel track, 30° maximum climbing ability, and ≥450mm ground clearance. This heavy duty crawler solar piling machine ensures stability of 13-15t heavy equipment in mountain and muddy terrain, adapting to complex sites of large solar power stations.

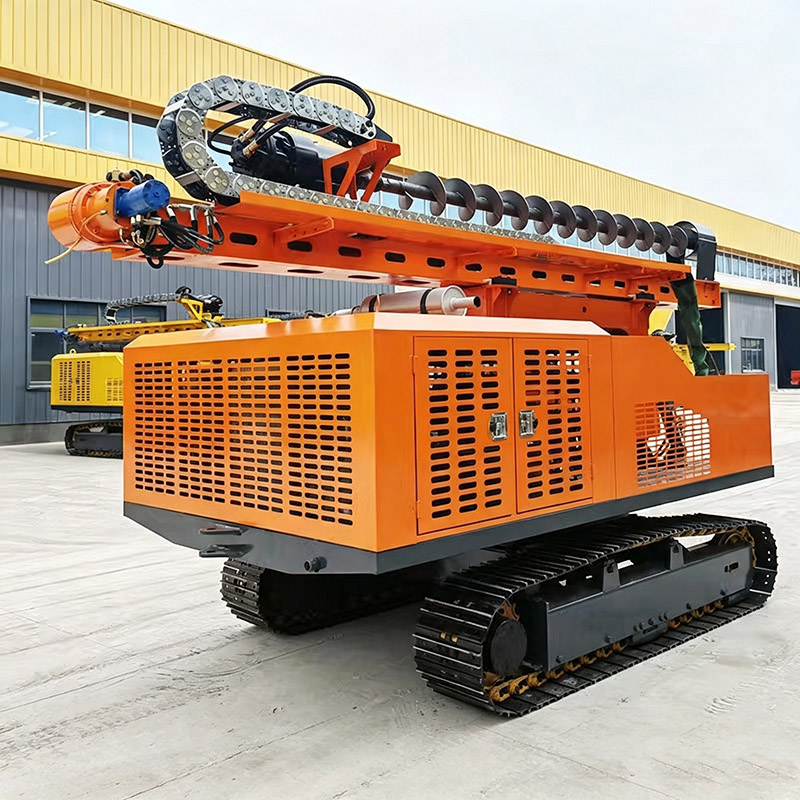

Air-Cooled + Water-Cooled Composite Cooling, Long-Term Heavy Load Operation
Adopting high-power air-cooled + water-cooled composite cooling system, 200L large-capacity hydraulic tank, and 28MPa rated system pressure, it effectively controls equipment temperature during heavy-load operation, supporting long-term continuous piling in large solar projects and ensuring construction progress.

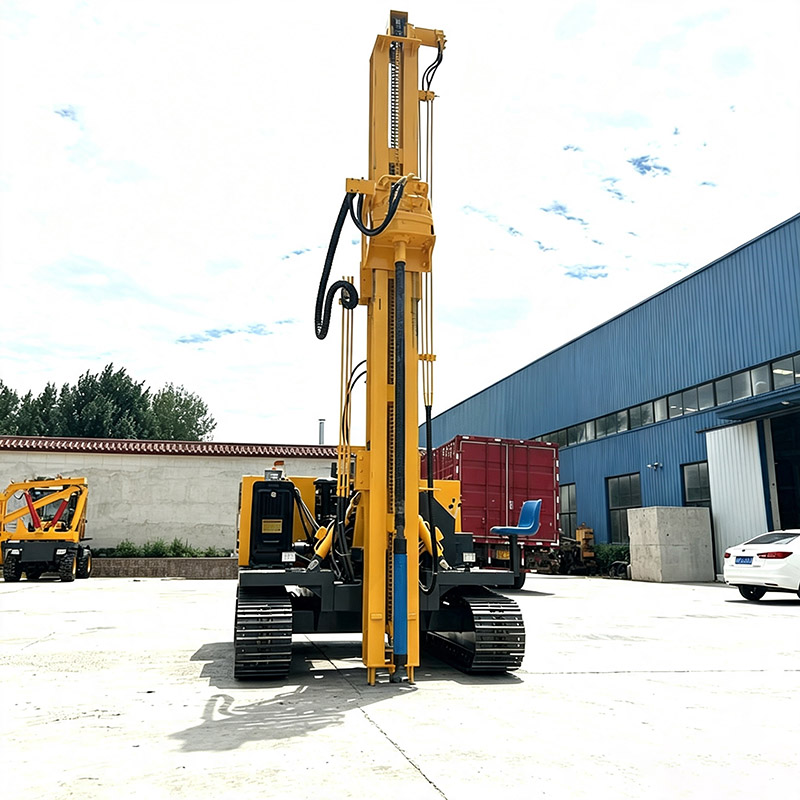

100kN Lifting Force, Super-Heavy Mast
Super-heavy dedicated mast with 60-100kN feeding/lifting force improves drilling stability and accuracy. This large solar foundation drilling equipment adapts to 12-18m deep operation needs, providing reliable support for large solar deep pile foundations and improving construction quality.
PV-130 (Jumbo) Piling Rig Specifications | |||||
Specifications | Specifications | Parameter Values | Parameter | Parameter | Specifications |
Basic Parameters | Model | PV-130 (Jumbo) | Travel mechanism | Travel motor | Dual-motor drive, heavy-duty design |
Operating weight | 13.0 – 15.0 tons | Max. travel speed | 0 ~ 2.8 km/h | ||
Overall dimensions (L x W x H) | Approx. 6000 × 2800 × 3500 mm (transport configuration) | Max. gradeability | 30° | ||
Track ground contact length | Approx. 3200 mm | Undercarriage structure | Reinforced K-frame chassis | ||
Track shoe width | 600 mm (mining-grade steel tracks) | Working mechanism | Mast type | Ultra-heavy-duty specialized mast | |
Ground clearance | ≥ 450 mm | Max. drilling/piling diameter | 350 ~ 500 mm | ||
Powertrain System | Engine | Cummins 132 kW | Max. drilling/piling depth | 12 ~ 18 m | |
Starting method | Electric start (24V) | Feed/hoist force | 80 kN / 100 kN | ||
Hydraulic System | Main pump type | Imported variable-displacement piston pump | Rotary head torque | 9000 N·m | |
System rated pressure | 28 MPa | Impact function | Compatible with hydraulic impact hammer | ||
Hydraulic oil tank capacity | 200 L | Application scenarios | Key selling points | Designed for ultra-hard rock strata, deep foundation pits, and pilot hole drilling; features an ultra-high torque rotary head with impact hammer functionality to overcome extreme geological challenges. Specifications | |
Cooling method | High-capacity hybrid air and water cooling system | ||||
Hard Rock Formations in Large Ground Solar Power Stations
For hard rock deep pile needs of large ground solar power stations, PV-130's 9000N·m torque + optional hydraulic impact hammer efficiently overcome hard rock formations. Reinforced chassis adapts to complex terrain, and 18m deep drilling meets deep pile design, improving power station construction efficiency and stability.
High-Altitude Hard Rock Mountain Solar Projects
Serving high-altitude hard rock mountain solar projects, the 132kW Cummins power system adapts to high-altitude low-pressure environments. Air-cooled + water-cooled composite cooling copes with high-altitude temperature changes. 30° climbing ability ensures mountain movement efficiency, providing stable deep pile foundations for high-altitude solar systems.
Large Infrastructure-Solar Integrated Projects
Adapting to large infrastructure-solar integrated projects such as railways and airports, φ350-500mm large borehole operation meets infrastructure solar pile foundation design. Heavy-duty chassis + dual-motor drive adapt to complex terrain, and 9000N·m torque efficiently completes deep pile construction, improving project progress.
Frozen Soil Layer Solar Power Station Construction
For frozen soil layer solar power stations, optional hydraulic impact hammer function efficiently breaks frozen soil through impact + rotary operation. 132kW Cummins power provides strong crushing force, and composite cooling system ensures stable equipment operation in low-temperature environments, enabling solar development in frozen soil layers.
Q: What is the piling efficiency of PV-130 in hard rock formations?
A: In hard rock formations, with the hydraulic impact hammer, the piling speed reaches about 8-12 minutes per pile (depending on rock hardness and depth). 9000N·m torque + impact function greatly improve hard rock crushing efficiency, shortening the construction period of large solar projects.
Q: What are the equipment's transportation dimensions and weight? Which transportation method is suitable?
A: Transportation dimensions are approximately 6000×2800×3600mm, with total weight of 13-15 tons. It is suitable for heavy flatbed truck transportation. The integrated design eliminates disassembly, enabling quick commissioning after arriving at the site.
Q: What is the maintenance cycle of this pile driver?
A: Regular maintenance is required every 500 hours, including air filter replacement, hydraulic oil inspection, track tension adjustment, and cooling system cleaning. Drill rods and track plates are vulnerable parts, which need regular replacement based on hard rock construction intensity. We provide professional after-sales guidance and parts supply.
Q: Can piling parameters be customized for large solar projects?
A: We can customize drilling depth range, mast type, and choose whether to equip hydraulic impact hammer according to project needs. Please contact our technical team to confirm specific customization plans.
