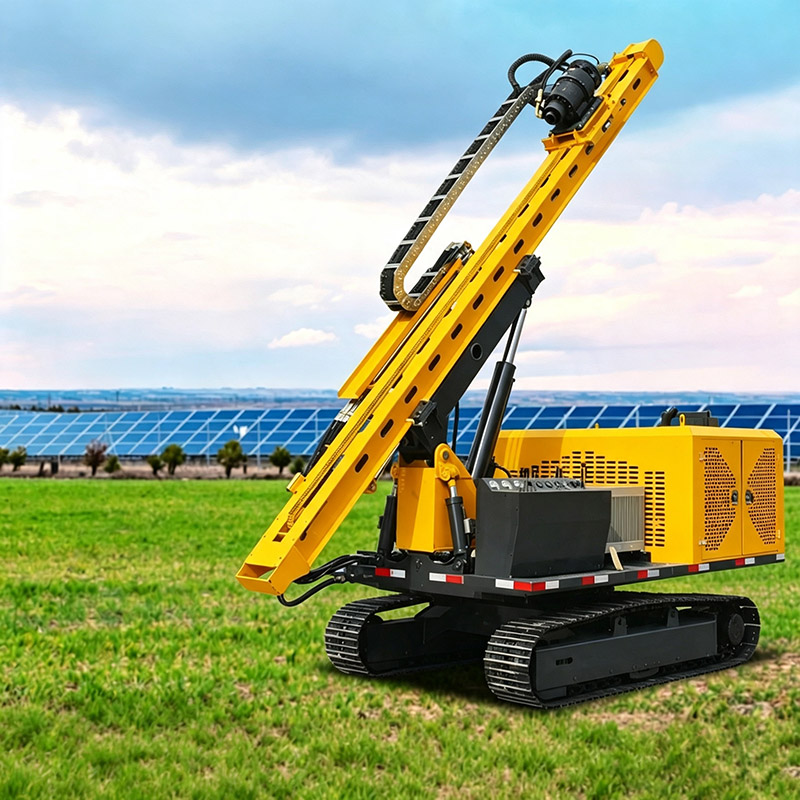

35° Super Climbing Ability, Smooth Travel in Complex Mountains
With 2800mm track ground contact length, 500mm track width (rubber/steel optional), 35° maximum climbing ability, and ≥400mm ground clearance, this mountain solar pile driving rig easily traverses steep slopes and muddy sections, ensuring equipment movement efficiency in complex mountain solar sites.
Dual-System Automatic Leveling, Precise Piling on Steep Slopes
Equipped with swing arm automatic leveling + mast cylinder leveling dual system, it quickly calibrates level on slopes over 30°, ensuring drilling vertical accuracy. This automatic leveling solar pile driver avoids pile deviation caused by mountain tilt, providing stable structural support for mountain solar systems.

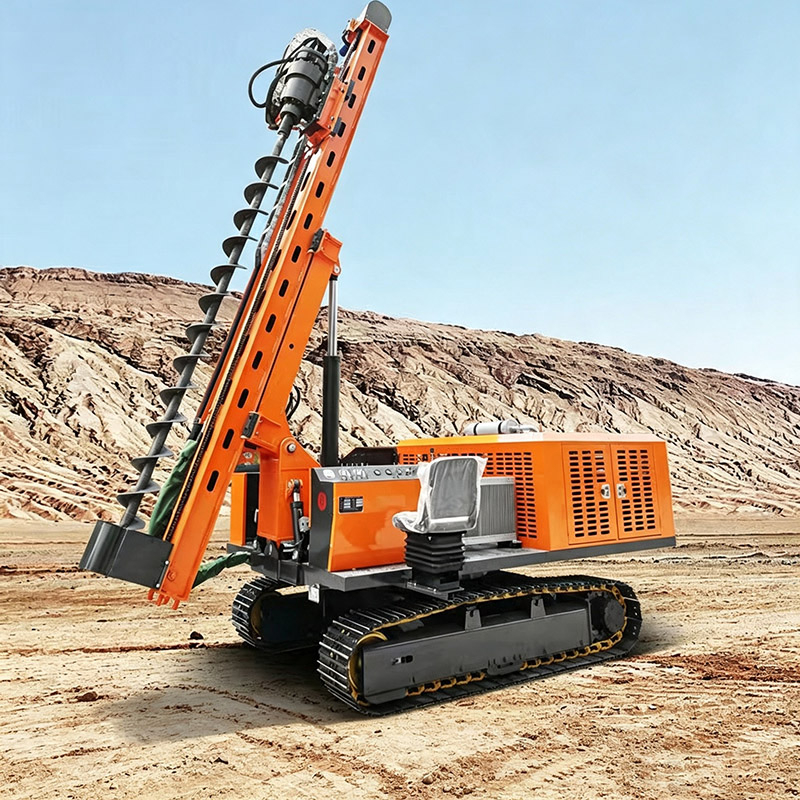

6500N·m Ultra-High Torque, 15m Deep Drilling
113kW Yuchai engine + load-sensitive variable piston pump deliver 6500N·m power head torque, supporting φ300-400mm large boreholes and 10-15m deep drilling. This high torque solar drilling machine meets deep pile design needs of mountain solar projects, improving wind resistance stability of solar systems.
Independent Air-Cooled Cooling, Long-Term Outdoor Operation
The independent large-displacement air-cooled system operates without water, stably reducing temperature in mountain high-heat environments, ensuring continuous power and hydraulic system operation. It supports long-term continuous piling in mountain solar projects, adapting to complex outdoor conditions.

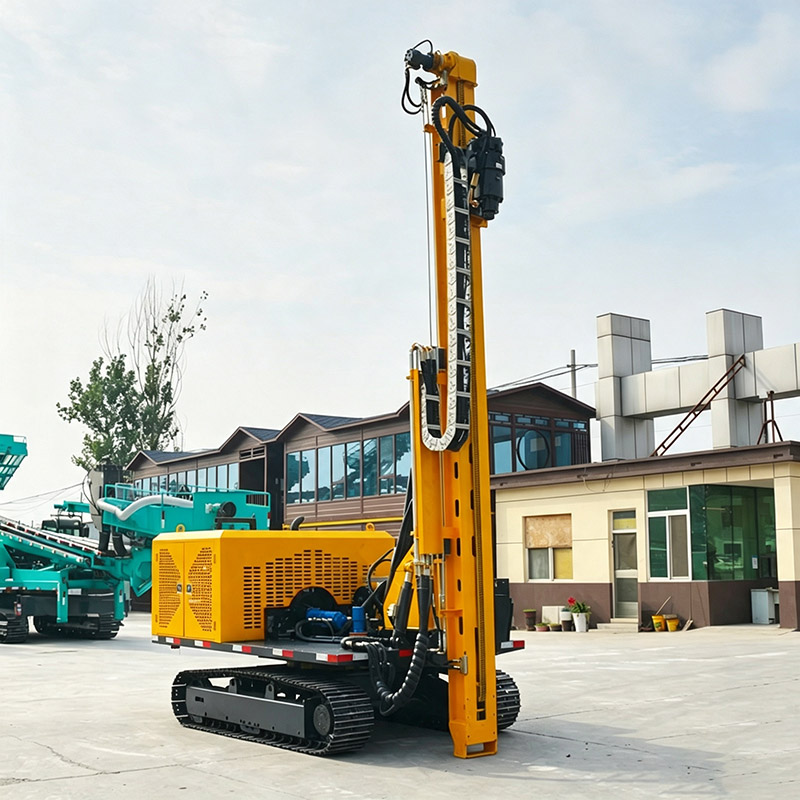

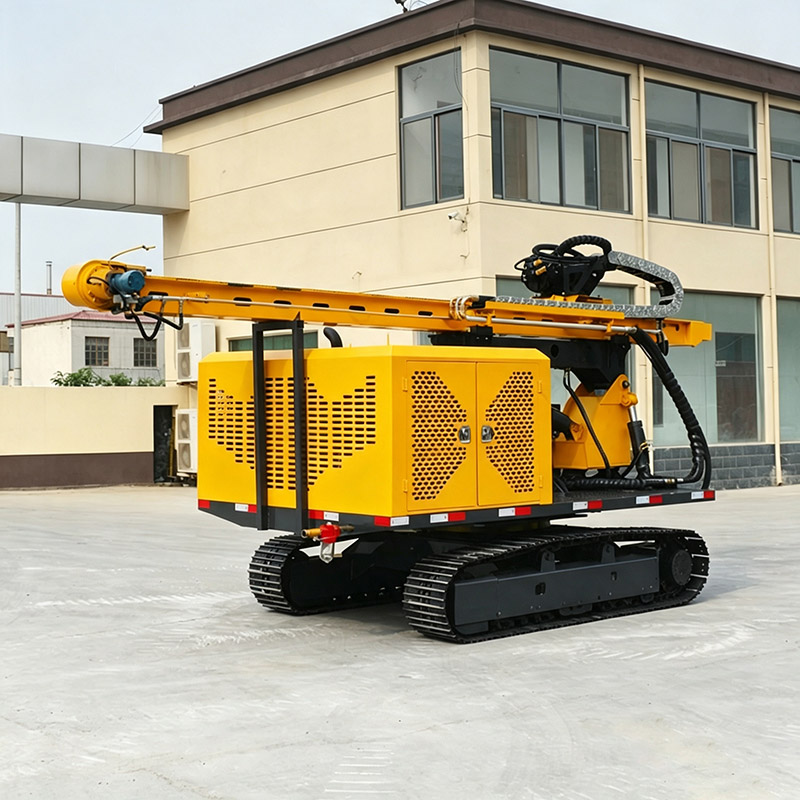

Heavy-Duty Telescopic Mast, High-Stability Operation
The heavy-duty telescopic mast with 60kN feeding force/80kN lifting force improves drilling stability and accuracy. This heavy duty solar piling equipment flexibly extends to adapt to different depth construction, providing reliable support for complex mountain solar projects.

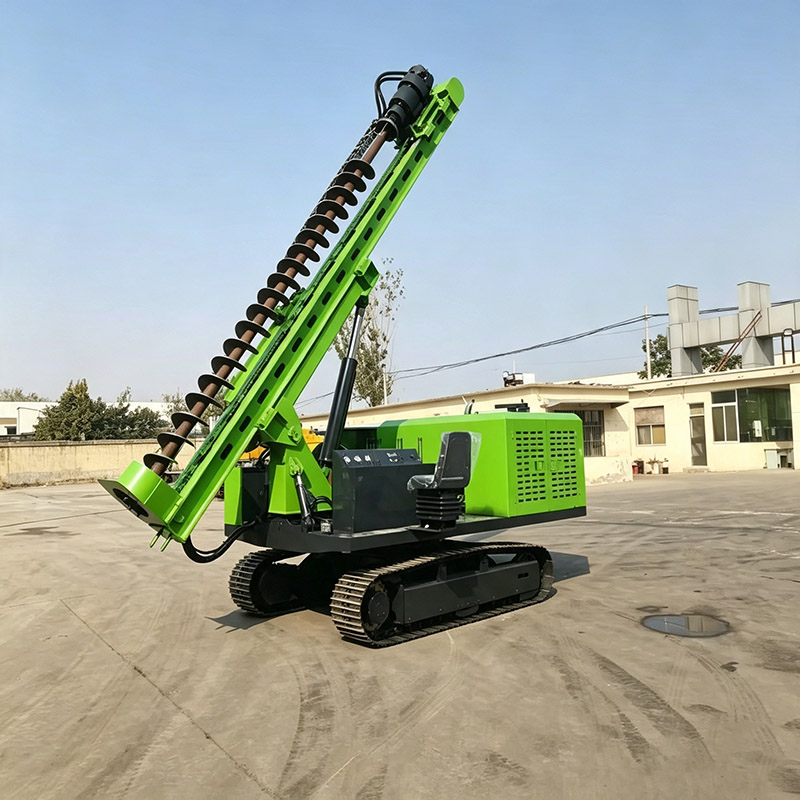

113kW Yuchai Power, Strong and Reliable
113kW Yuchai electric-start engine (24V) delivers stable power for complex mountain working conditions. The electric-start method is convenient, ensuring quick startup in mountain environments. This crawler solar foundation machine provides continuous power for piling operations across challenging terrain.

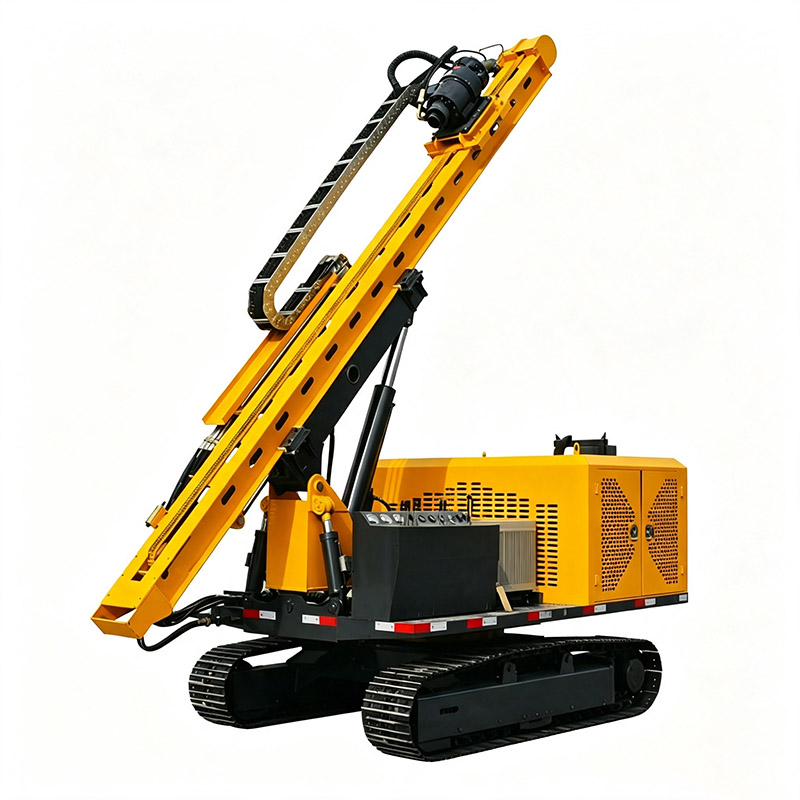

PV-100 (Mountain King) Pile Driver Specifications | |||||
Specifications | Specifications | Specifications | Parameters | Parameter | Specifications |
Basic Parameters | Model | PV-100 (Mountain King) | Travel system | Travel motor | High-torque travel motor |
Operating weight | 10.0 – 12.0 tons | Max. travel speed | 0 ~ 3.0 km/h | ||
Overall dimensions (L x W x H) | Approx. 5200 × 2600 × 3200 mm (transport configuration) | Max. gradeability | 35° | ||
Track ground contact length | Approx. 2800 mm | Leveling function | Swing arm auto-leveling + Mast: Hydraulic cylinder leveling | ||
Track shoe width | 500 mm (rubber or steel options available) | Work equipment | Mast type | Heavy-duty telescopic mast | |
Ground clearance | ≥ 400 mm | Max. drilling/piling diameter | 300 ~ 400 mm | ||
Powertrain System | Engine | Weichai 113 kW | Max. drilling/piling depth | 10 ~ 15 m | |
Starting method | Electric start (24V) | Feed/hoist force | 60 kN / 80 kN | ||
Hydraulic System | Main pump type | Load-sensing variable displacement piston pump | Rotary head torque | 6,500 N·m | |
System rated pressure | 25 MPa | Application scenarios | Key selling points | Specifically designed for steep slopes exceeding 30° and complex mountainous terrain for PV installations; features powerful auto-leveling and climbing capabilities, ensuring exceptional safety. | |
Hydraulic oil tank capacity | 160 L | ||||
Cooling method | Independent high-capacity air-cooling system | ||||
Mountain Solar Projects on Slopes Over 30°
Designed for mountain solar projects on slopes over 30°, 35° climbing ability and dual-leveling system enable quick equipment calibration on steep slopes. 6500N·m torque realizes 15m deep drilling, providing stable pile foundations for steep slope solar systems and enabling solar development on steep terrain.
Large Solar Power Stations in Complex Mountains
Adapting to pile foundation construction of large mountain solar power stations, the crawler chassis handles muddy slopes, and the independent air-cooled system supports long-term continuous operation. High-torque deep drilling meets power station deep pile design, improving overall construction efficiency and stability.
High-Altitude Mountain Solar Projects
For high-altitude mountain solar projects, the 113kW Yuchai power system adapts to high-altitude low-pressure environments, and the independent air-cooled system copes with temperature changes. 35° climbing ability and dual-leveling system ensure construction efficiency, enabling solar development in high-altitude mountains.
Mountain Infrastructure Pile Foundation Construction
Serving mountain railway and highway infrastructure pile foundations, 6500N·m torque completes φ300-400mm large boreholes. 35° climbing ability adapts to complex mountain terrain, and the heavy-duty mast ensures construction stability, improving mountain infrastructure project progress.
Q: What is the piling efficiency of PV-100 on 30° steep slopes?
A: On 30° steep slopes with conventional mountain soil or soft rock, the piling speed reaches about 5-8 minutes per pile (depending on formation hardness and depth). The dual-leveling system quickly calibrates equipment, and 6500N·m torque ensures deep drilling efficiency, improving mountain solar construction progress.
Q: What are the equipment's transportation dimensions and weight? Which transportation method is suitable?
A: Transportation dimensions are approximately 5200×2600×3200mm, with total weight of 10-12 tons. It is suitable for heavy flatbed truck transportation. The integrated design eliminates disassembly, enabling quick commissioning after arriving at mountain sites.
Q: What is the maintenance cycle of this pile driver?
A: Regular maintenance is required every 500 hours, including air filter replacement, hydraulic oil inspection, track tension adjustment, and cooling system cleaning. Drill rods and track plates are vulnerable parts, which need regular replacement based on mountain construction intensity. We provide professional after-sales guidance and parts supply.
Q: Can piling parameters be customized for mountain solar projects?
A: We can customize mast telescopic stroke, drilling depth range, and choose rubber/steel tracks according to project needs. Please contact our technical team to confirm specific customization plans.
Q: Will equipment power be affected during high-altitude mountain operation?
A: The 113kW Yuchai engine adapts to high-altitude low-pressure environments, and the load-sensitive piston pump maintains stable power output. The independent air-cooled system adapts to high-altitude temperature changes, ensuring stable equipment operation in high-altitude mountains.
