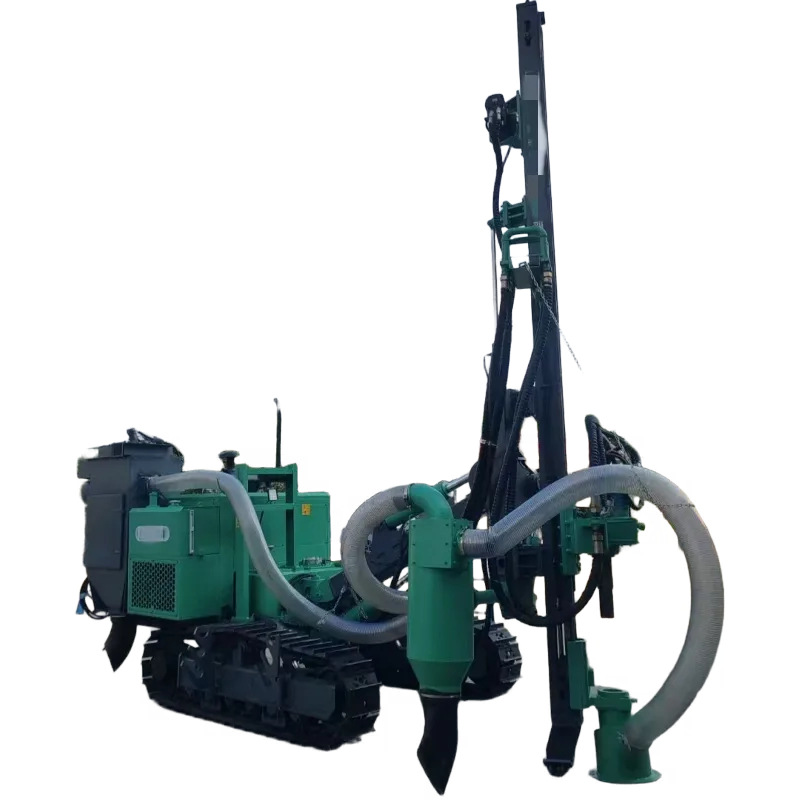

Split-type Structure for Complex Working Scenarios
The split layout allows disassembly, transportation and quick assembly in narrow mining areas, mountainous regions and other complex terrains. This split type drilling rig solves the entry problem of integrated rigs, greatly improving equipment adaptability in hard-to-reach locations.
DTH Impact Drilling for Efficient Medium-Hard Rock Drilling
Adopting DTH impact drilling process with 1200-1600N·m rotary torque, this DTH drilling machine achieves efficient crushing of medium-hard rock formations. With 90-115mm borehole diameter and 15-20m depth, it accurately meets mine blasting hole position requirements.
Crawler Off-Road Chassis for Flexible Mining Terrain Adaptation
Crawler chassis with adjustable track gauge, ≤20° climbing ability and 0-2.5km/h walking speed easily traverses muddy, sloping and other complex mining road conditions. This hydraulic crawler drilling rig ensures equipment movement and positioning efficiency in challenging field sites.
Integrated Power & Air Compressor System for Stable Output
Equipped with Yuchai 58KW diesel engine and single-screw air compressor, it provides stable 0.7-1.2MPa air pressure and 6-9m³/min exhaust volume, continuously powering DTH impact drilling and avoiding operation interruption due to insufficient power.
Pulse Dust Removal + Dual Control Mode for Safety & Efficiency
Pulse reverse dust removal system effectively reduces drilling dust. Hydraulic pilot + electric dual control mode enables precise and convenient operation, improving work safety and control efficiency while reducing manual errors. This mining blast hole drilling rig is designed for professional mining operations with strict safety standards.
YQD-115 Lightweight DTH Drilling Rig Technical Specifications | |||
Parameter Name | Parameter Value | Unit | Remarks |
Basic Parameters | |||
Model | YQD-115 (Lightweight Crawler-Mounted) | — | |
Drilling Method | DTH (Down-the-Hole) Percussive Drilling | — | |
Borehole Diameter Range | Φ90 – 115 mm | mm | |
Drilling Depth | 15 – 20 m | m | |
Total Machine Weight | 4,580 kg | kg | |
Transport Dimensions (L × W × H) | Approx. 3,800 × 1,800 × 2,100 mm | mm | |
Gradeability | ≤20° | ° | |
Travel Speed | 0 - 2.5 km/h | km/h | |
Power System | |||
Rated Power | Yuchai 58 kW | kW | |
Cooling Method | Water-cooled radiator | — | |
Air Compressor System | |||
Air Compressor Type | Single-screw air compressor | — | |
Discharge Pressure | 0.7 - 1.2 MPa | MPa | |
Air Delivery | 6 - 9 m³/min | m3/min | |
Discharge Pipe Diameter | 2 inches (50 mm) | mm | |
Feed and Rotation System | |||
Feed Method | Hydraulic cylinder + Key-type drive | — | |
Maximum Feed Force | 12 kN | kN | |
Maximum Pull-out Force | 22 kN | kN | |
Feed Stroke | |||
Rotation Head Speed | 80 - 120 rpm | rpm | |
Rotation Torque | 1200 - 1600 N·m | N·m | |
Drill Mast and Boom | |||
Mast Pitch Angle | +15° / -10° | ° | Up and down |
Mast Swing Angle | ±15° or ±20° | ° | Left and right |
Mast Extension/Retraction | Fixed type | — | |
Undercarriage System | |||
Undercarriage Type | Crawler-type | — | |
Track Shoe Width | 400 mm | mm | |
Track Gauge | Extendable | — | |
Other Parameters | |||
Dust Removal Method | Pulse-jet dust cleaning | — | |
Control Method | Hydraulic pilot + Electronic control | — | |
Applicable Rock Type | Medium-hard rock | — | |
Mine Blasting Drilling
Suitable for drilling pre-split holes and loose blasting holes in metal and non-metal mines. 15-20m depth and 90-115mm borehole diameter accurately match mine blasting hole design requirements, improving blasting precision and safety.
Quarry Stone Mining
For blasting drilling in quarry stone mining, the crawler chassis adapts to rugged quarry terrain, efficiently drilling medium-hard rock to provide stable pre-support for the stone mining blasting process.
Roadbed Engineering Blasting
Serving blasting construction of highway and railway roadbeds, the split-type structure enables operation in narrow sites like mountain roadbeds, accurately drilling blasting holes to ensure roadbed project progress and blasting safety.
Water Conservancy Project Blasting
Used for foundation blasting drilling in water conservancy hubs and reservoirs, the pulse reverse dust removal system reduces dust pollution to water conservancy sites, and stable drilling efficiency ensures smooth blasting construction.
Q: How to transport the split-type YQD-115 rig?
A: After disassembly, the main machine and supporting components can be transported separately by flatbed truck. The overall transportation dimension is about 3800×1800×2100mm, and single components are smaller after disassembly, adapting to transportation needs in mountainous areas and narrow mining zones.
Q: Which rock types is this rig suitable for?
A: The standard configuration is suitable for medium-hard rock formations. For harder rock types, you can contact us to select matching drilling tools and hammers to ensure drilling efficiency and equipment stability.
Q: How about the dust removal effect of the rig?
A: It adopts a pulse reverse dust removal system, which effectively collects dust generated during drilling, reduces dust impact on operators and the environment, and meets environmental protection and safety requirements of mining operations.
Q: Is the equipment difficult to operate?
A: Equipped with hydraulic pilot + electric dual control mode, it is precise and easy to operate. Operators can get started after simple training, and we provide detailed operation manuals and after-sales technical guidance.
