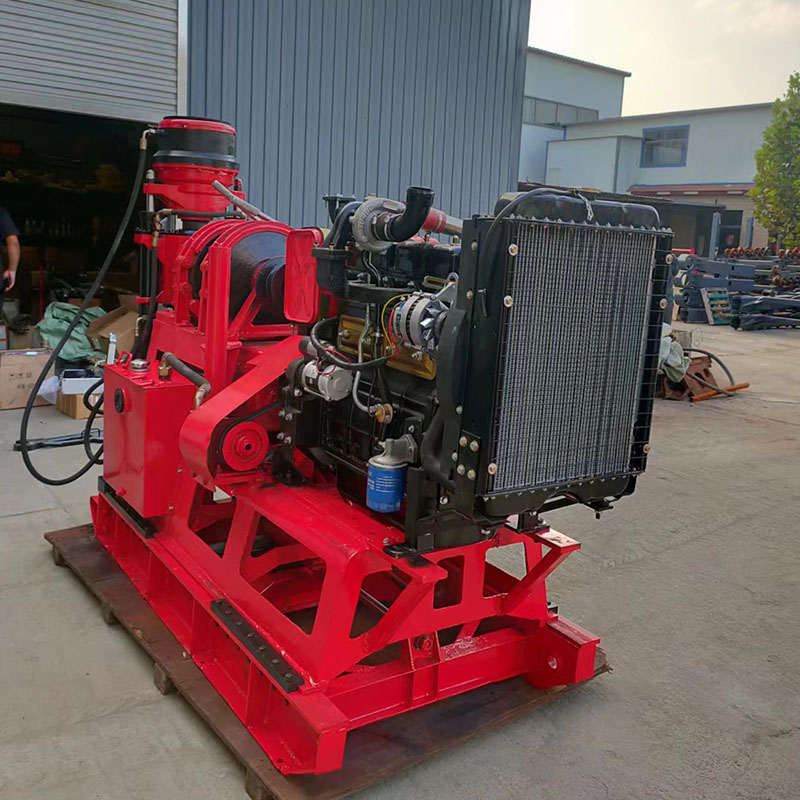

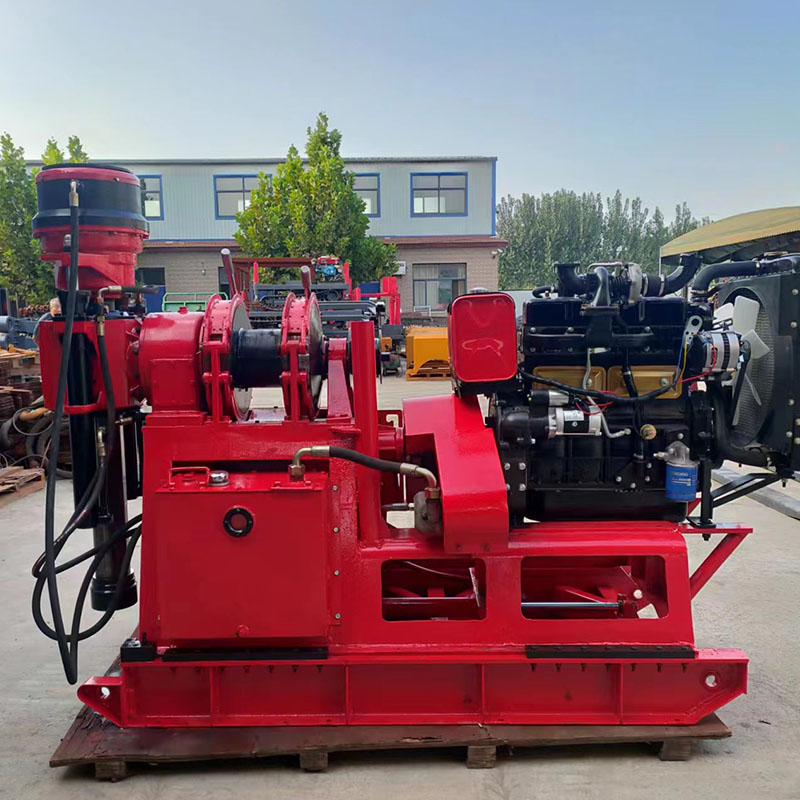

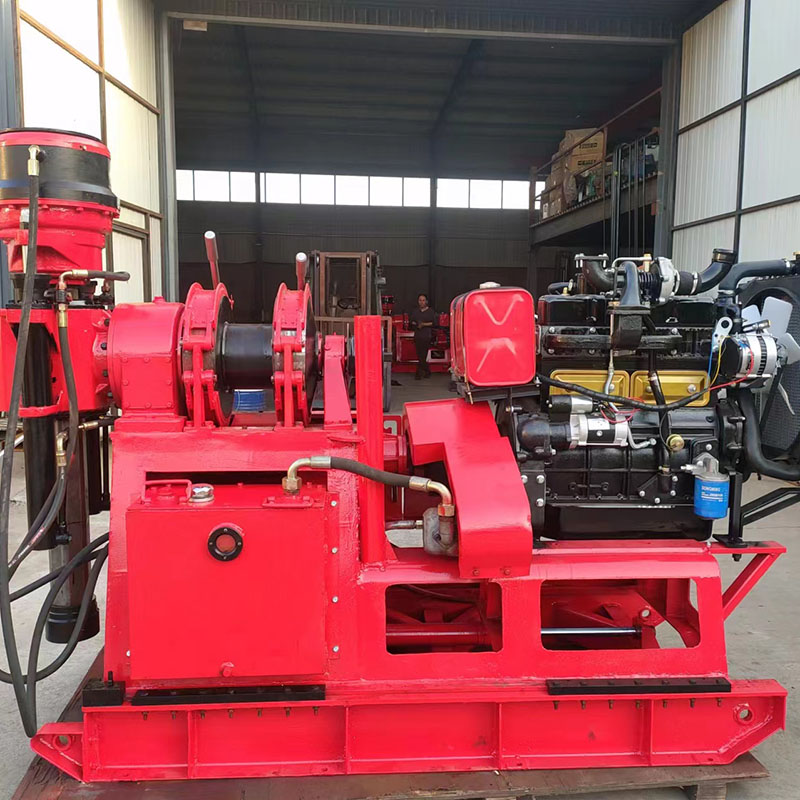

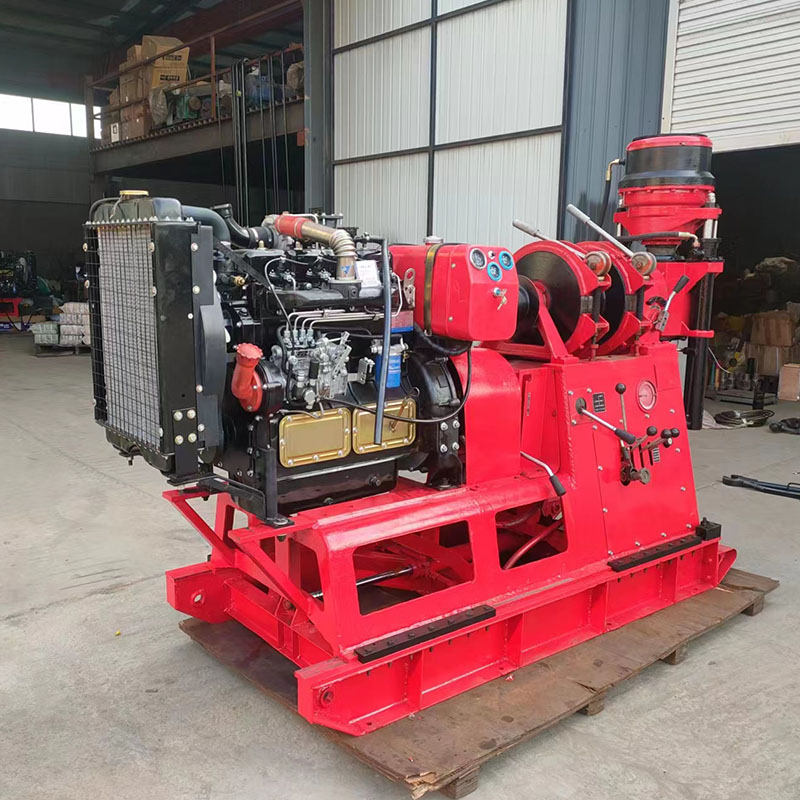

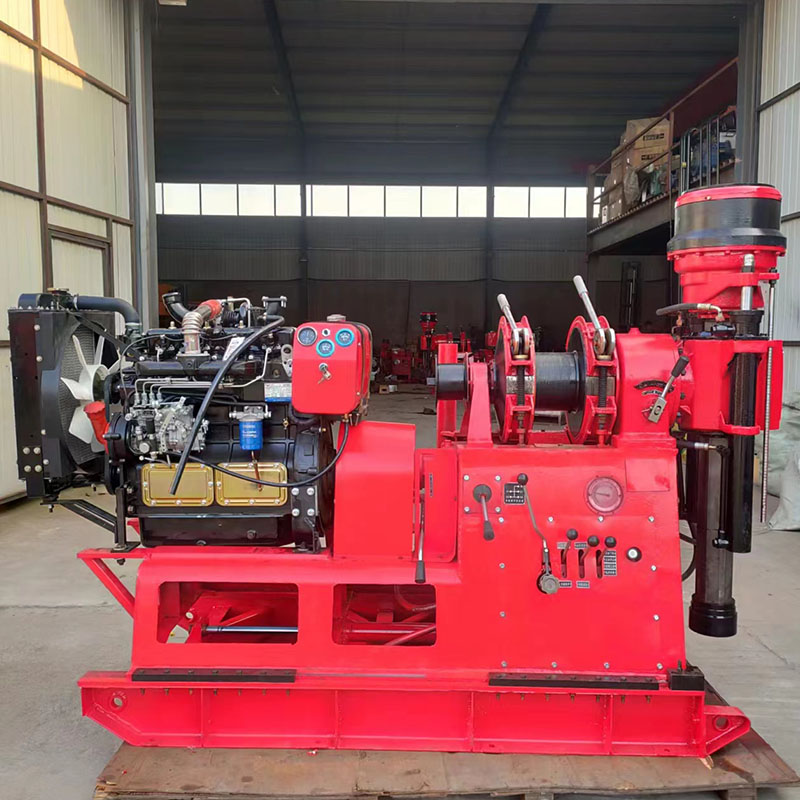

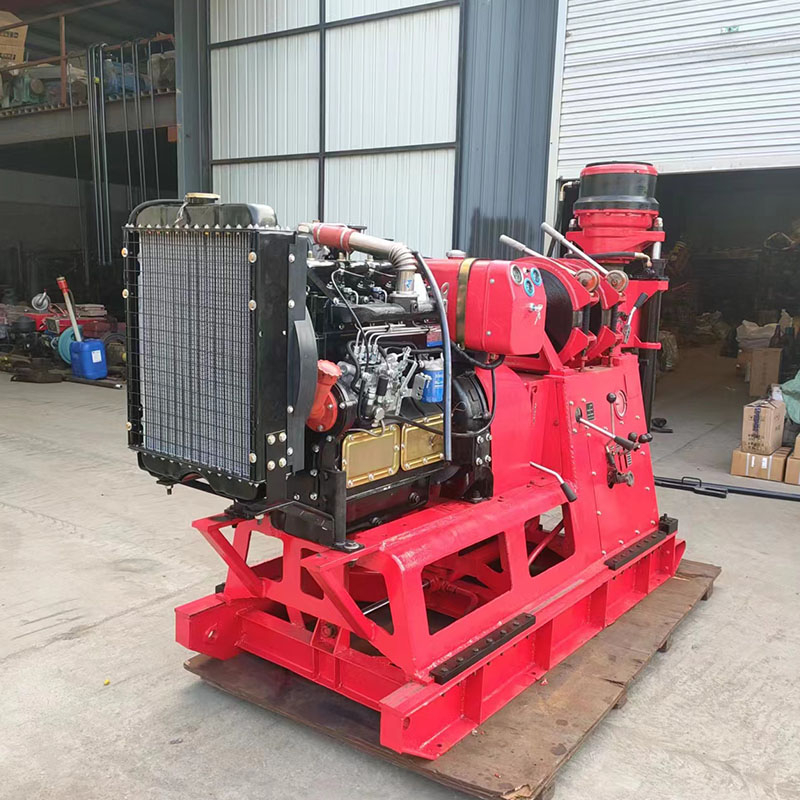

1. Multi-Spec Drill Pipe Compatibility, Full Depth Coverage
Supports 4 drill pipe sizes (73/60/50/42mm) with drilling depth ranging from 100m to 530m. This multi-depth drilling machine meets core sampling needs of different formations and depths, greatly improving equipment versatility and scenario adaptability.
2. Dual Power System, Flexible for Working Environments
Offers two power options: diesel engine (395K2, 19.85KW) for remote field sites without electricity, and electric motor (Y180L-4, 22KW) for power-sufficient mining areas, ensuring stable operations in different scenarios.
3. High Pulling Force & Long Stroke, Efficiently Handle Complex Conditions
With 60KN maximum spindle pulling force and 500mm spindle stroke, this geological exploration drilling rig quickly resolves emergencies like stuck pipes, reduces operation downtime, and improves drill pipe handling efficiency to accelerate exploration progress.
4. Full-Angle Drilling Capability, Cover Special Exploration Needs
Supports 0°-90° drilling angles, suitable for vertical geological exploration as well as inclined and horizontal hole drilling. This mineral exploration drilling equipment adapts to special scenarios like mineral exploration and hydrogeological surveys.
5. Efficient Hoisting System, Ensure Safety & Efficiency
The winch provides 30KN single-rope maximum lifting capacity, with multi-gear speeds for stable drill lifting. With 40m steel wire rope capacity, this deep hole drilling rig meets deep-hole operation requirements, fully ensuring work safety and efficiency.
TechnicalSpecificationsoftheXY-2BDrillingRig | |||||
Category | Parameter | Specifications/Values | Category | Parameter | Specifications/Values |
Basic Parameters | Drilling depth | 73mm drill rods: 100m; 60mm drill rods: 320m; 50mm drill rods: 380m; 42mm drill rods: 530m | Winch | Maximum lifting capacity (single line) | 30KN |
Borehole diameter | 96mm | Drum rotation speed | 20、39、85、170r/min | ||
Drilling inclination angle | 0–90° | Drum diameter | 140mm | ||
Overall dimensions of the drilling rig | 2220 × 900 × 1880 mm | Drum circumferential speed | 0.172、0.345、0.738、1.476 m/s | ||
Rig weight (excluding power unit) | 1200 kg | Wire rope diameter | 9.3mm | ||
Rotator | Spindle speed (forward rotation) | 57, 99, 157, 217, 270, 470, 742, 1024 r/min | Wire rope capacity | 40m | |
Prime mover | Diesel engine model | 395K2 | |||
Spindle speed (reverse rotation) | 45, 212 r/min | Diesel engine rated power | 19.85KW | ||
Spindle stroke | 560mm | Diesel engine rated speed | 2200r/min | ||
Maximum spindle lifting force | 60 kN | Electric motor model | Y180L-4 | ||
Maximum no-load upward movement speed of spindle | 0.05 m/s | Electric motor rated power | 22KW | ||
Oil Pump | Model | CBK1020/8 tandem gear pump | Electric motor rated speed | 1460r/min | |
Ideal for regional geological surveys, it can obtain core samples from different depth formations, providing accurate data for geological structure analysis and stratigraphic division. Its full-angle drilling capability adapts to complex terrain exploration.
Mineral Resource Exploration
For metal and non-metal mineral exploration, its 530m deep drilling capacity can penetrate deep ore bodies. Dual power configurations cover both field and mining site operations, efficiently collecting ore core samples to support reserve assessment.
Engineering Geological Survey
Used in pre-construction surveys for roads, bridges, and buildings, it can drill 0°-90° holes to obtain foundation rock samples, evaluate engineering geological stability, and provide reliable geological data for engineering design and construction.
Hydrogeological Investigation
Capable of drilling hydrogeological holes to detect deep underground water resource distribution. Its deep drilling capacity meets the needs of deep groundwater exploration, helping develop scientific water resource development and protection plans.
Q: What drill pipe specifications does the XY-2B rig support?
A: It supports four drill pipe sizes: 73mm, 60mm, 50mm, and 42mm, with corresponding drilling depths of 100m, 320m, 380m, and 530m. You can choose flexibly according to exploration project needs.
Q: Can the power type of this rig be customized?
A: Standard configurations include diesel and electric motor options. For special power needs (such as different power, fuel types), please contact us to discuss customization possibilities.
Q: What transportation methods are available for the rig?
A: The rig weighs 1200KG (excluding power unit) with dimensions 22209001980mm, and can be transported by flatbed trucks or containers. The crawler chassis supports short-distance self-movement on-site.
Q: How to handle stuck pipe during drilling?
A: The rig's maximum spindle pulling force is 60KN, which can handle mild stuck pipe conditions. For severe stuck pipes, it is recommended to use professional pipe-unsticking tools, and you can also contact technicians for guidance.
