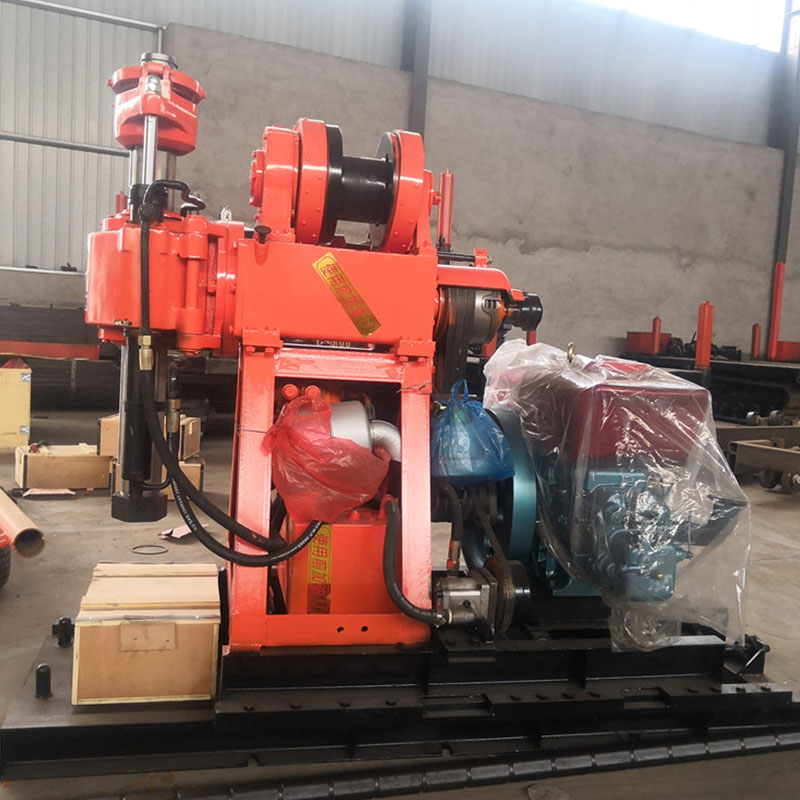

1. Core Sampling & Water Well Drilling in One Rig
Capable of both core rock sampling and water well drilling. With 100m depth and 130mm spud-in diameter, this core sampling drilling rig covers geological exploration and civil well drilling needs, reducing the number of equipment purchases for contractors and individual buyers.

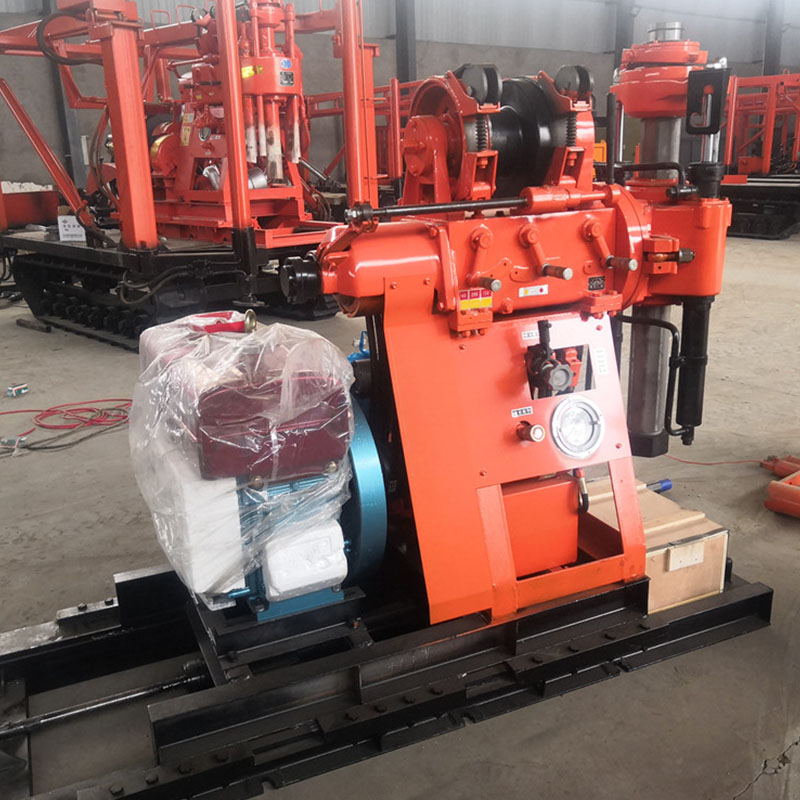

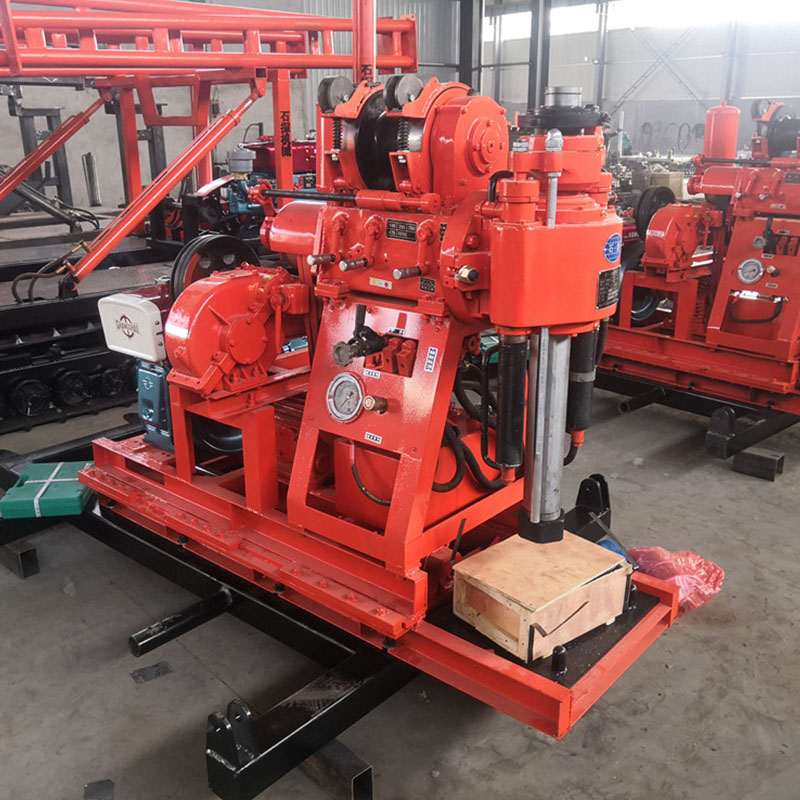

2. Three-Speed Spindle with Hydraulic Feed
Spindle speed adjustable across 142/285/570r/min, paired with a 450mm hydraulic cylinder feed stroke and 15KN feed force. This 100m water well drilling rig allows operators to select optimal drilling parameters for different formations, improving efficiency and core recovery rate.

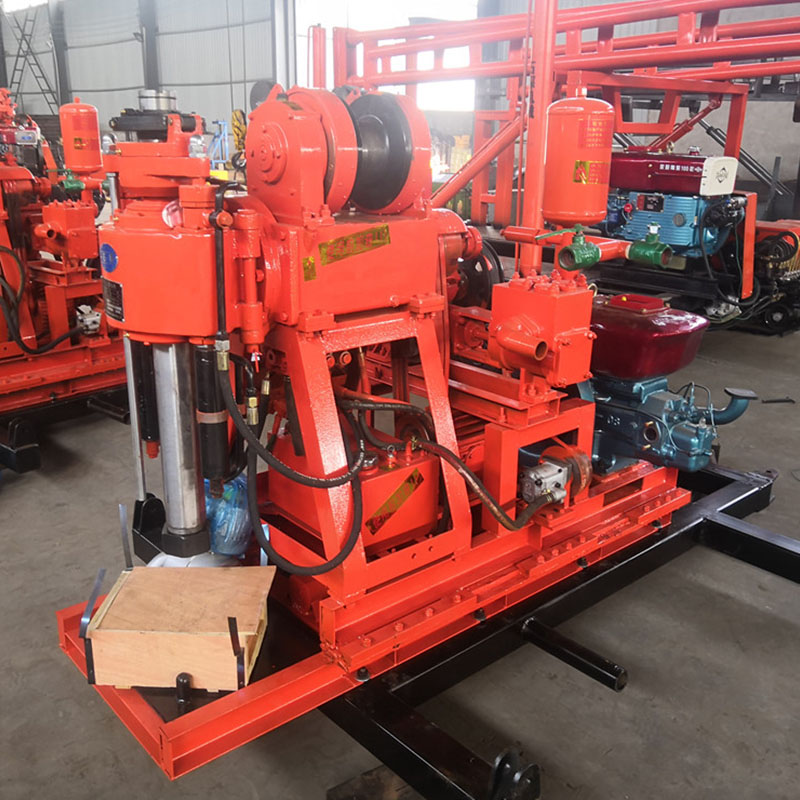

3. Dual Power Options: Diesel or Electric
Available with ZS1110 diesel engine (11.03KW) or Y132M-4 electric motor (7.5KW). Use diesel for remote fieldwork without power supply, or electric for locations with grid access — this diesel electric drilling rig flexibly adapts to different job site conditions.

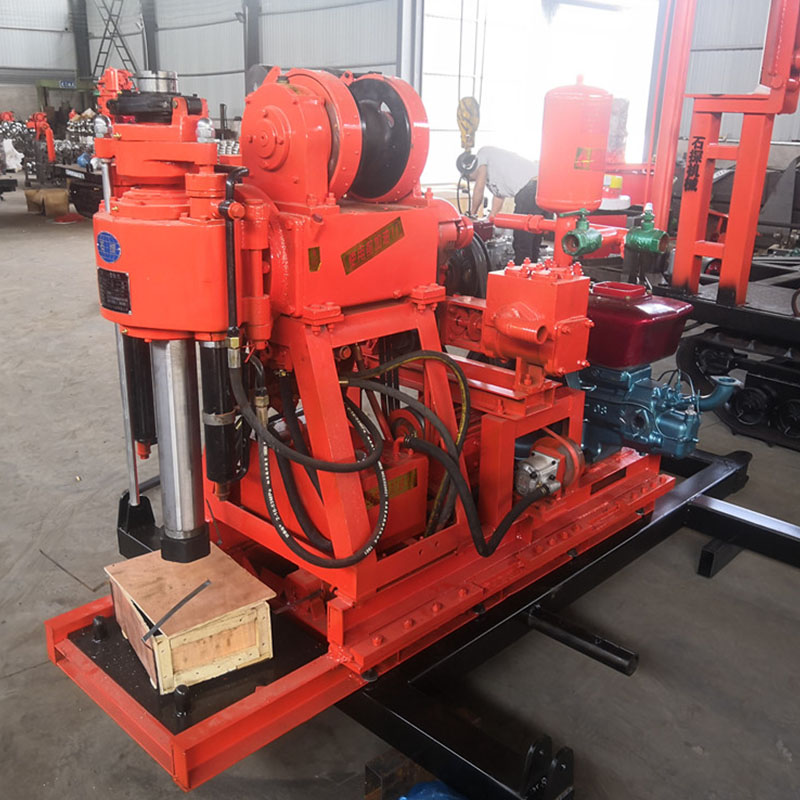

4. 525kg Lightweight & Easy to Relocate
Weighing only 525kg with dimensions of 1640×1030×1440mm, this portable geological exploration drilling rig can be transported by small trucks or farm vehicles. Ideal for mountain areas, farmland, and other sites with limited road access.

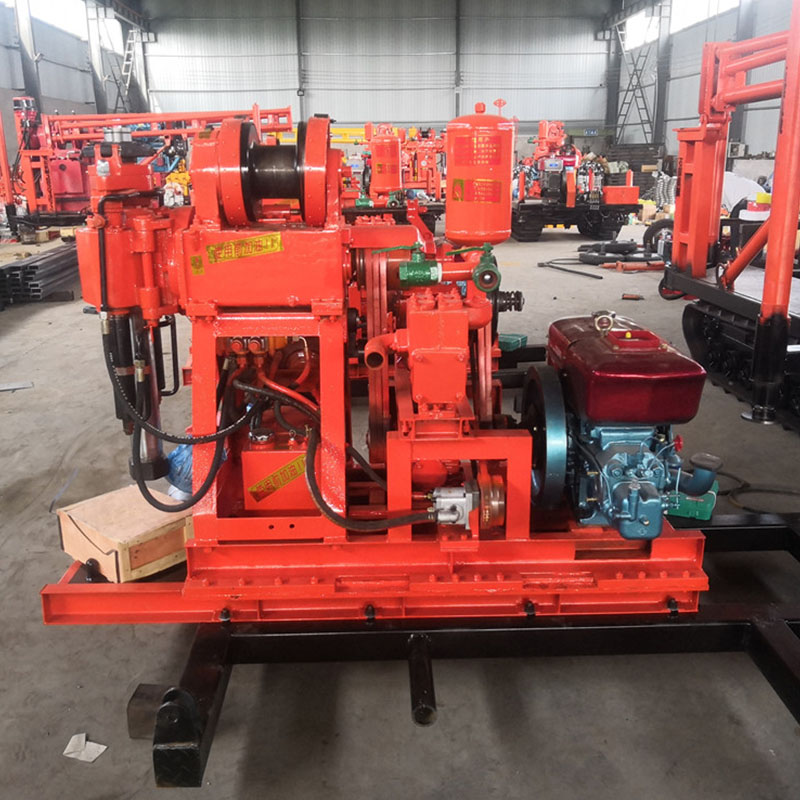

5. BW-100 Mud Pump Included
Comes with a BW-100 mud pump — single-cylinder, double-acting design with 12m³/hr flow rate and 0.7-1.2MPa working pressure. Provides stable mud circulation to support efficient drilling operations.
XY-1 Drilling Rig Technical Specifications | |||
1. Basic Parameters | |||
Drilling depth | 100m | Maximum hole diameter | 130mm |
Final hole diameter | 75mm | Drill rod diameter | 42、50mm |
Drilling inclination angle | 90~75° | Drill rig overall dimensions (L × W × H) | 1640×1030×1440(mm) |
Drill rig weight (excluding power unit) | 525Kg | ||
2. Rotary head | |||
Spindle speed (3 gears, r/min) | 142、285、570 r/min | Hydraulic cylinder feed stroke | 450mm |
Maximum hydraulic cylinder feed force | 15KN | Maximum lifting force of hydraulic cylinder | 25KN |
Maximum upward movement speed of cylinder (no-load) | 2m/min | Maximum upward movement speed of hydraulic cylinder (no-load) | 3m/min |
Maximum operating torque | 0.7KN | ||
3. Hoist | |||
Maximum lifting capacity (single line) | 10KN | Winch drum speed (r/min) | 55、110、220 r/min |
Drum diameter | 145mm | Winch drum peripheral speed (m/s) | 0.42、0.84、1.68 |
Wire rope diameter | 9.3mm | Wire rope capacity | 27m |
Brake drum diameter | 230mm | Brake band width | 50mm |
4. Water pump | |||
Type | Horizontal single cylinder double acting | Rated strokes (with diesel engine) | 120 (96)次/min |
Rated strokes (with electric motor) | 100/min | Maximum pressure | 1.2MPa |
Working pressure | 0.7 MPa | Cylinder liner diameter | 80mm |
Piston stroke | 100mm | ||
5. Oil pump | |||
Type | Gear pump | Model | YBC-12/125 |
Rated pressure | 12.5/MPa | Maximum pressure | 20MPa |
Flow rate | 12mL/r | Rated speed | 2000 r/min |
6. Power unit | |||
Diesel engine unit | ZS1110 | Rated power | 11.03KW |
Rated speed | 2200r/min | ||
Electric motor model | Y132M-4 | Rated power | 7.5KW |
Rated speed | 1440 r/min | ||
1. Mineral Exploration & Geological Sampling
Suitable for core drilling and rock sampling during mineral reconnaissance and detailed exploration phases. The 75mm final hole diameter with 42/50mm drill rods produces intact core samples for reliable mineral resource assessment.
2. Shallow Water Well Drilling
The 100m drilling depth and 130mm spud-in diameter meet the requirements for rural drinking water and agricultural irrigation wells. Dual power configuration ensures normal operation even in remote areas without grid electricity.
3. Engineering Geological Survey
Supports drilling angles from 90° to -75°, suitable for borehole sampling in building foundation surveys, highway and railway geological investigations, providing accurate subsurface structure data for engineering projects.
4. Small-Scale Contracting & Individual Drilling
The 525kg lightweight body lowers transport and site access barriers. Ideal for individual contractors and small construction teams conducting geological exploration and water well drilling, with low investment cost and short payback period.
Q: Is 100m drilling depth sufficient for water well applications?
A: The XY-1A is designed for 100m depth with 130mm spud-in diameter, suitable for shallow wells such as rural drinking water and agricultural irrigation. For deeper wells, we offer 200m and above models. Please contact us for recommendations based on your needs.
Q: Should I choose diesel engine or electric motor?
A: For fieldwork or sites without power supply, we recommend the diesel engine (ZS1110, 11.03KW). For factories or locations with stable electricity, the electric motor (Y132M-4, 7.5KW) offers lower operating costs and less noise.
Q: What is the core recovery rate?
A: Core recovery rate depends mainly on geological conditions and operational technique. The rig's three-speed spindle and hydraulic feed system allow parameter adjustment to optimize core recovery for different formations. We recommend evaluating based on your specific geological conditions.
Q: Is it easy to transport? What vehicle is needed?
A: The rig weighs 525kg with dimensions of 1640×1030×1440mm. A small truck, farm vehicle, or pickup can handle transport. The base has a skid structure for manual positioning on-site, making relocation flexible and straightforward.
Q: What is the difference between 42mm and 50mm drill rods? Which should I use?
A: 42mm and 50mm refer to drill rod outer diameter. The 50mm rod has greater rigidity and is better suited for harder formations; 42mm works well for standard conditions. Choose based on your final hole diameter (75mm) and formation type—feel free to consult us if unsure.
