600m Truck Mounted Water Well Drilling Rig

Product Advantage

600m Customizable Drilling Depth

Maximum drilling depth of 600m with three configuration options—300m/500mm/600m—selectable based on project geological conditions and budget. This 600m water well drilling rig uses DTH drilling technology with 110-350mm borehole diameter, covering most water well and mining drilling requirements.

Full Hydraulic Drive System

Diesel engine-powered full hydraulic system delivers smooth and efficient power transmission with rapid operational response. This full hydraulic water well drilling rig features a hydraulic control console that integrates multi-way valves and pressure gauges, enabling operators to precisely control drilling parameters for improved efficiency and safety.

Truck-Mounted Flexible Relocation

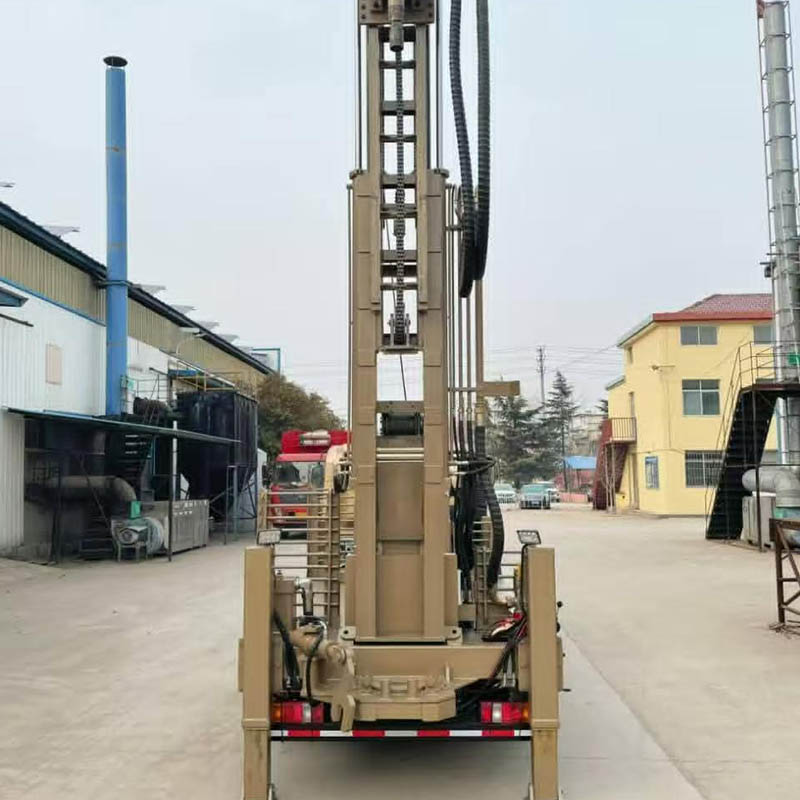

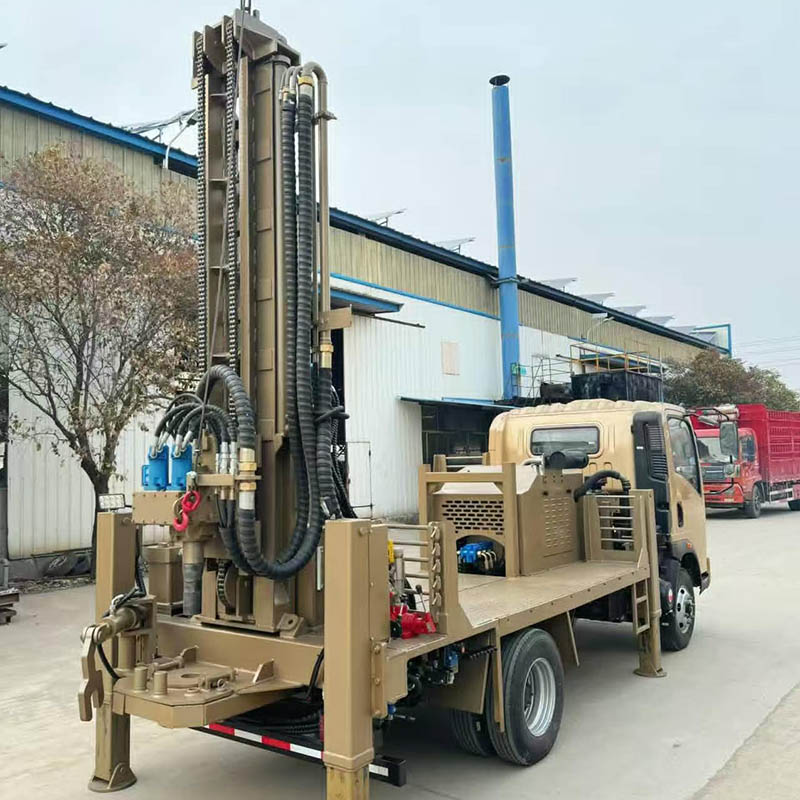

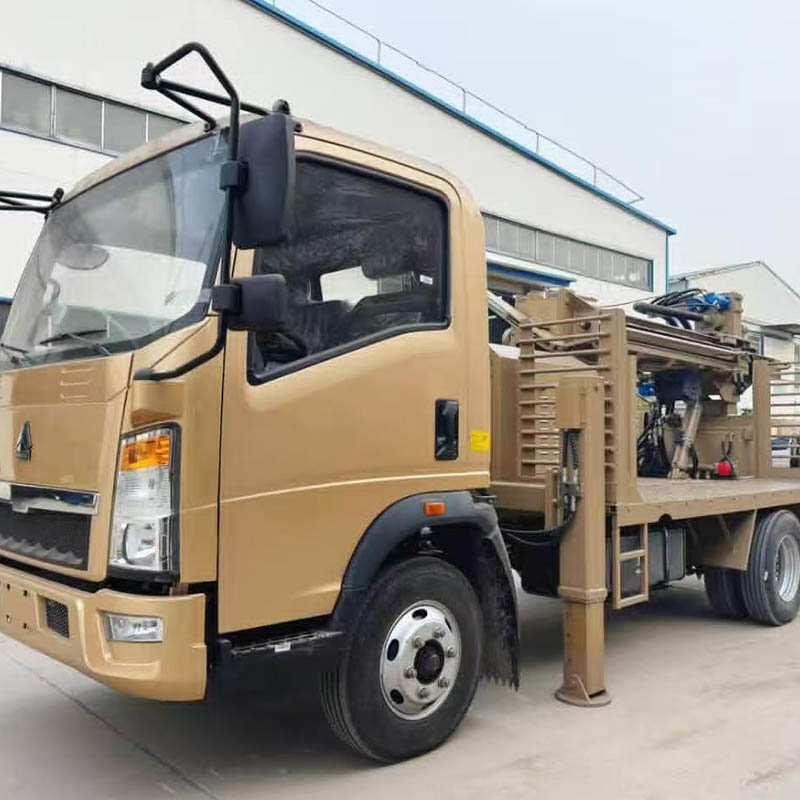

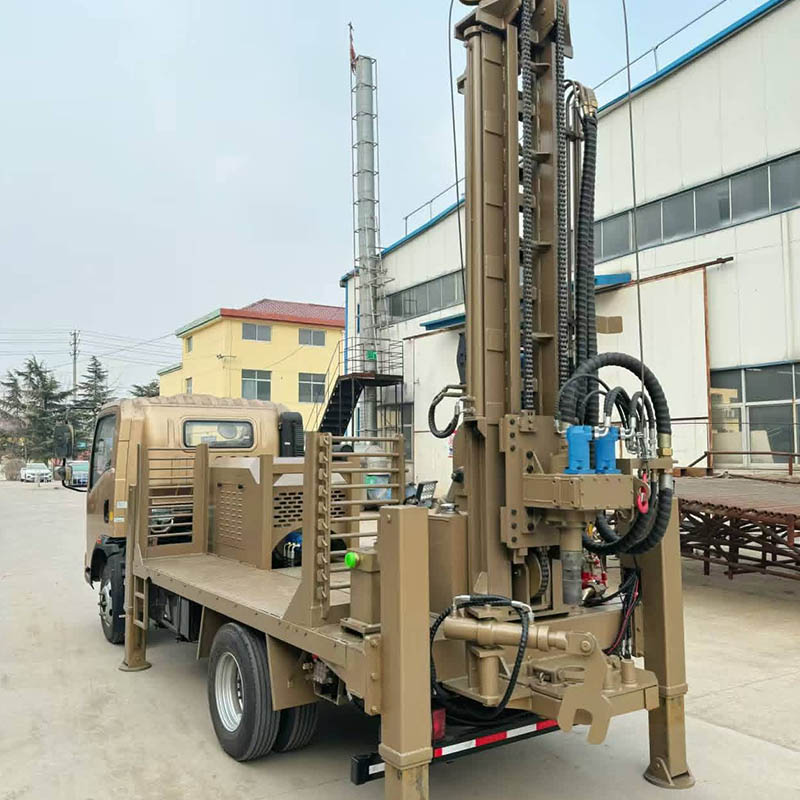

Mounted on a heavy-duty truck chassis with dimensions of 6,000×2,500×2,500mm and weight of 9,000kg, the rig can be rapidly transported by road to job sites. The folding hydraulic mast reduces transport height and enables quick deployment upon arrival, making this truck mounted DTH drilling machine ideal for multi-site contractors.

Comprehensive Core Components

Core components include motor, pressure vessel pump, PLC control cabinet, gearbox, bearings, and engine—all from established industry brands ensuring long-term stable operation. This customizable drilling depth rig is delivered with machinery test report and outgoing inspection video for traceable quality assurance.

Hebei Manufacturing, 1-Year Warranty

Manufactured in Hebei's professional drilling rig production base with a mature supply chain and after-sales service network. As a heavy duty water well drilling equipment supplier, the complete unit comes with a 1-year warranty, factory-delivered with test reports and inspection videos to reduce procurement risk. Flexible manufacturing customization available for special project requirements.

Technical Parameters

Product Uses

• Energy & Mining Drilling

The 600m drilling depth and 110-350mm borehole diameter meet deep-hole drilling requirements in mining exploration and energy development. DTH drilling technology performs excellently in hard rock formations, supported by the S100T air compressor for stable air pressure and drilling efficiency. The truck-mounted design enables rapid relocation across complex mining terrain.

• Municipal Water Supply & Agricultural Irrigation

Suitable for deep well construction at urban water treatment plants and farmland irrigation well drilling. Three depth configurations—300m/500m/600m—match different aquifer depths, while 110-350mm diameter meets various water yield requirements. The 9-ton weight and compact dimensions facilitate transport and deployment in agricultural and urban areas.

• Construction Site Foundation Exploration

For foundation surveying and dewatering well construction at building sites, the rig's DTH method rapidly penetrates sand-gravel layers and bedrock, providing geological sampling and groundwater level data. The hydraulic control system operates smoothly, suitable for work near urban environments with minimal construction disruption.

• Geological Exploration & Environmental Monitoring

Supporting customizable drilling depth and diameter, the rig is applicable for geological sampling, environmental monitoring wells, and shallow geothermal drilling. The PLC control system facilitates drilling parameter recording, providing data support for geological analysis. Factory inspection video and test reports ensure equipment reliability.

FAQ

Q1: What is the maximum drilling depth? Can other depths be customized?

A1: The maximum drilling depth is 600m, with three standard configurations—300m/500m/600m. For other depth customization, please provide your project geological conditions and drilling requirements. We will evaluate technical feasibility and offer a tailored solution.

Q2: What drilling method does the rig use? Is it suitable for hard rock?

A2: The rig adopts DTH (Down-The-Hole) drilling technology with an S100T air compressor, performing efficiently in hard rock, bedrock, and sand-gravel formations. Recommended working air pressure should be confirmed based on specific formations. For loose formations, please consult us for mud drilling configuration options.

Q3: What are the weight and transport dimensions? Are special transport permits required?

A3: The complete unit weighs 9,000kg with dimensions of 6,000×2,500×2,500mm, mounted on a heavy-duty truck chassis. This specification meets road transport standards in most regions and typically does not require special permits. We recommend confirming destination transport regulations in advance—we can assist with transport solution recommendations.

Q4: What are the core components? How long is the warranty?

A4: Core components include motor, pressure vessel pump, PLC control cabinet, gearbox, bearings, and engine. The complete unit comes with a 1-year warranty, delivered with machinery test report and outgoing inspection video. Common spare parts and wear items are available long-term—we advise stocking critical components in advance.

Q5: Do you provide factory inspection and test reports?

A5: Yes, each unit undergoes rigorous factory testing with machinery test report and outgoing inspection video provided. We support third-party inspection agency verification. For specific certifications (such as CE, ISO, etc.), please notify us in advance—we will evaluate and provide corresponding support.
