1. 1,000m Drilling Depth
Maximum drilling depth of 1,000m using φ89 drill pipe, covering the majority of groundwater aquifer depths for municipal supply, agricultural irrigation, and industrial water wells. This 1000m deep water well drilling rig features a φ600mm rotary table opening that enables larger-diameter boreholes for higher well yield.
2. Powerful Motor Configuration

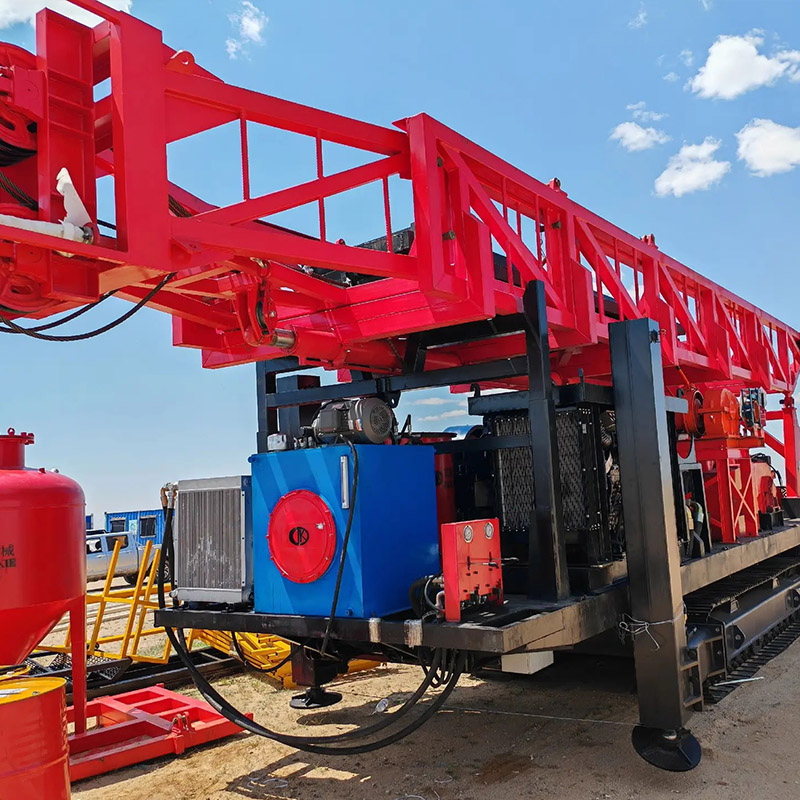

Equipped with a 274kW drilling motor, 75kW mud pump, and 7.5kW hydraulic pump station. The power system can be customized to meet specific project requirements. This hydraulic water well drilling machine delivers stable and efficient power output during drilling through its 20MPa hydraulic system, even in challenging geological conditions.
3. Efficient Hoisting System

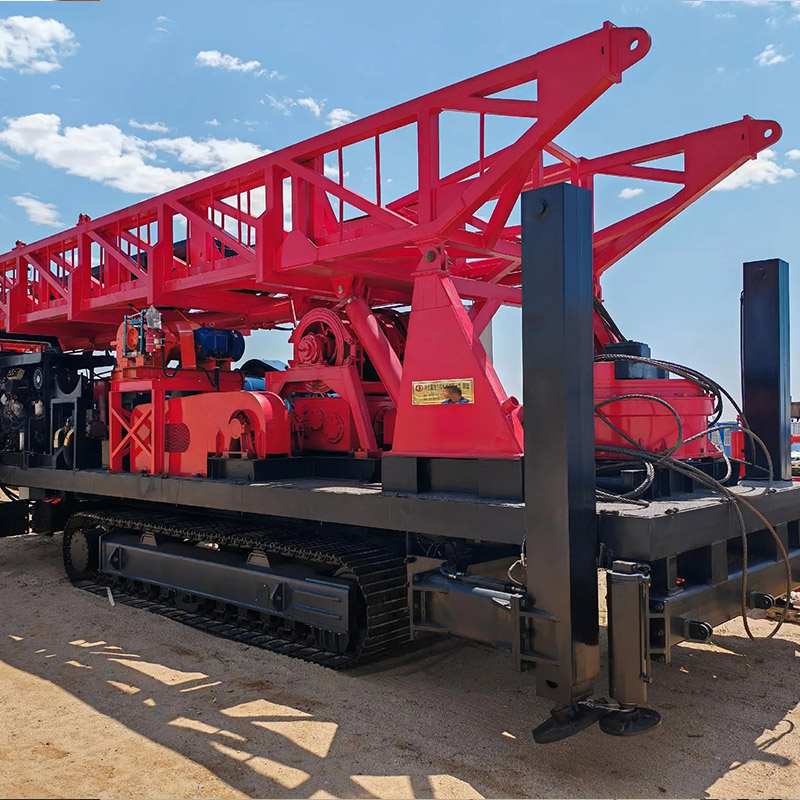

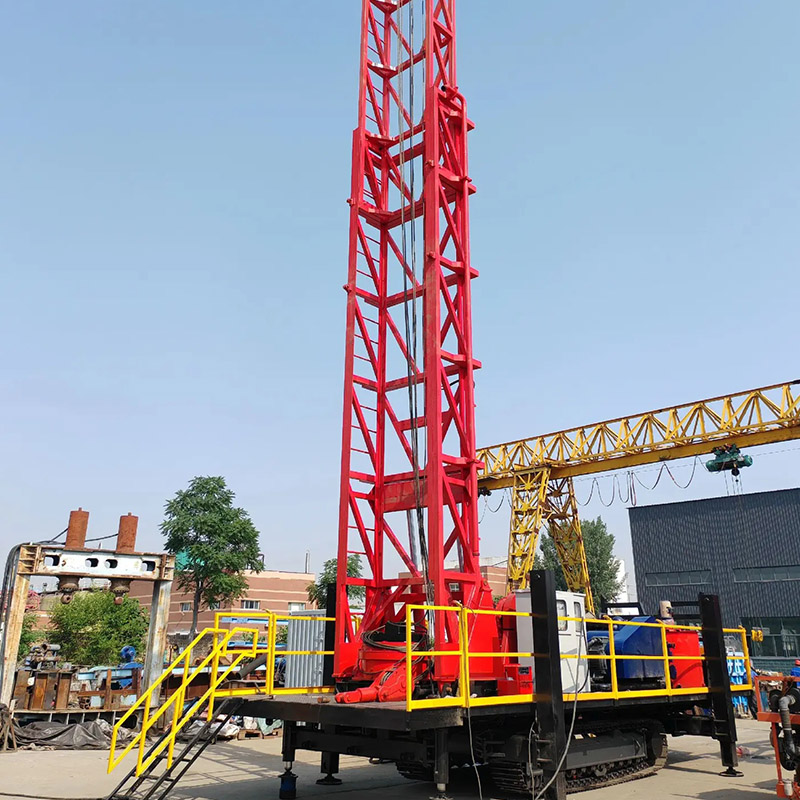

Both main and auxiliary winches deliver 50kN maximum lifting capacity with three adjustable hoisting speeds (0.9/1.4/2.9 m/s). The 15.3m mast with a 50-ton rated load capacity significantly improves drill pipe handling efficiency and reduces construction time.
4. Multi-Speed Rotary Control
Four rotary speed settings (43, 69, 101, 139 r/min) with forward and reverse rotation. Operators can select the optimal speed based on formation characteristics, improving drilling efficiency and extending tool life. This deep borehole drilling equipment adapts to soft soil, sand, bedrock, and other complex formations.
5. Easy Transport and Relocation

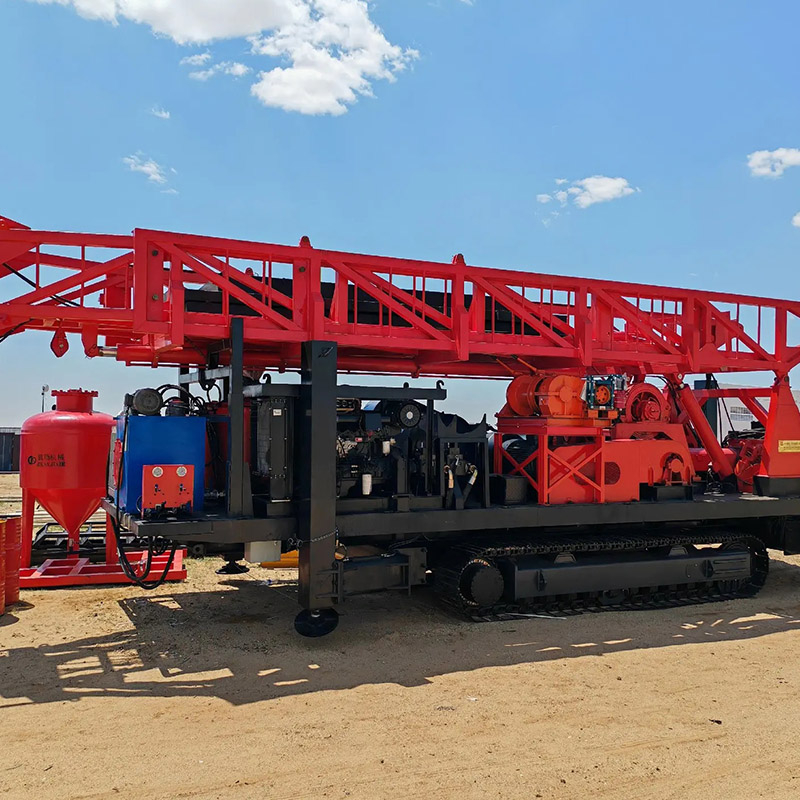

Truck-mounted design with compact transport dimensions of 14.6×2.8×4m and a total weight of 25 tons. This truck mounted water well drilling rig can be transported by standard flatbed trailer to remote job sites. The modular structure enables quick assembly and commissioning, minimizing site preparation time and maximizing equipment utilization.
Model | ST-1000 | ||
Drilling Depth (with φ89 drill pipe) (m) | 1000m | ||
Rotary Table Bore Diameter (mm) | φ600 | ||
Maximum Rotary Table Torque (kN-m) | 12 | ||
Rotary Table Speed (r/min) | 43、69、101、139 (forward &reverse) | ||
Maximum Lifting Capacity of Main winch (kN) | 50 | ||
Maximum Lifting Capacity of Auxiliary Winch (kN) | 50 | ||
Hoisting Speed (m/s) | 0.9、1.4、2.9 | ||
Rated Pressure of Hydraulic System (MPa) | 20 | ||
Kelly Bar（mm） | 108×108×10500 | ||
Effective Height of Derrick (m) | 15.3 | ||
Rated Load of Derrick (t) | 50 | ||
Mud Pump Model | F-130（user-selected） | ||
Motor Power（kW） | Drilling Rig：274 | Mud Pump：75 | |
Air Compressor：7.5 | Hydraulic Pump Station：7.5 | ||
Overall Dimensions (L×W×H) (m) | Transportation Status | 14.6×2.8×4 | |
Working Status | 13.5×4.2×17.9 | ||
Total Weight of the Rig (t) | 25 | ||
1.Municipal Water Supply Projects
The ST-1000 1,000m drilling capability effectively develops deep confined aquifers, providing stable water sources for urban water treatment plants and distribution networks. The φ600mm borehole diameter is suitable for constructing large-diameter supply wells with high yield, meeting residential and firefighting water demands.
2.Agricultural Irrigation Programs
In arid and semi-arid regions, this rig can drill deep into groundwater layers to provide reliable irrigation water. The truck-mounted design enables rapid relocation across vast farmland, efficiently completing multiple irrigation wells to enhance agricultural drought resistance.
3.Industrial Water Development
Suitable for constructing private water wells at mining sites, manufacturing plants, and construction projects. The rig adapts to various geological conditions, meeting continuous industrial water demand, reducing operational costs, and ensuring reliable water supply for production activities.
4. Geothermal and Exploration Drilling
With its 1,000m depth capacity and strong hoisting power, the ST-1000 is also applicable for shallow geothermal well drilling and geological exploration sampling. Multi-speed rotary control and reverse rotation provide flexible technical support for complex formation exploration.
Q: What geological conditions is the ST-1000 suitable for?
A: The rig works with soft soil, sand, gravel, and medium-hard bedrock formations. We recommend selecting appropriate drill bits and mud formulas based on your geological survey report. For special formation requirements, please share your site data for tailored drilling solutions.
Q: What are the transport and installation requirements?
A: The truck-mounted ST-1000 (14.6×2.8×4m) requires a flatbed trailer rated for 25+ tons. The job site needs a level, solid foundation—we suggest a concrete pad or steel plates. Installation guidance service is available upon request.
Q: Is the mud pump included? Can I use a different model?
A: The F-130 mud pump is optional. You can select a different pump based on your project's flow rate and pressure needs. Share your drilling process requirements, and we will recommend a compatible pumping solution.
Q: Do you provide after-sales service and spare parts?
A: Yes, we offer standard warranty coverage and supply common spare parts and wear items. We advise stocking key components in advance to ensure uninterrupted operations. Technical training and on-site support can be arranged with prior notice.
Q: Can the rig be customized for my specific project?
A: Yes. We support configuration customization including motor power, mud pump model, and other components based on your drilling depth, formation type, and site conditions. Please provide your detailed project parameters for a tailored proposal.
