Product Advantage

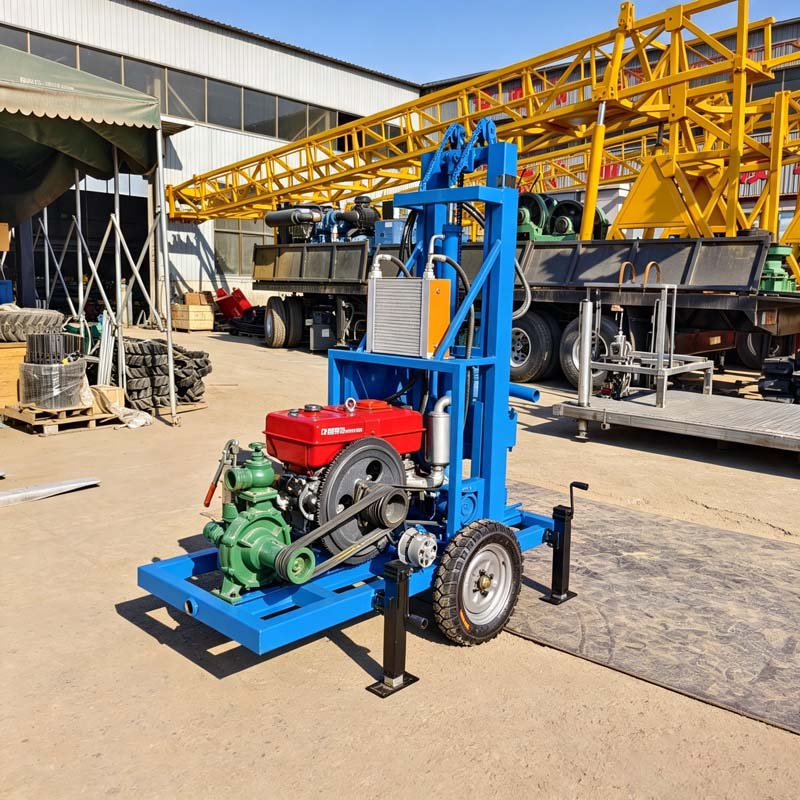

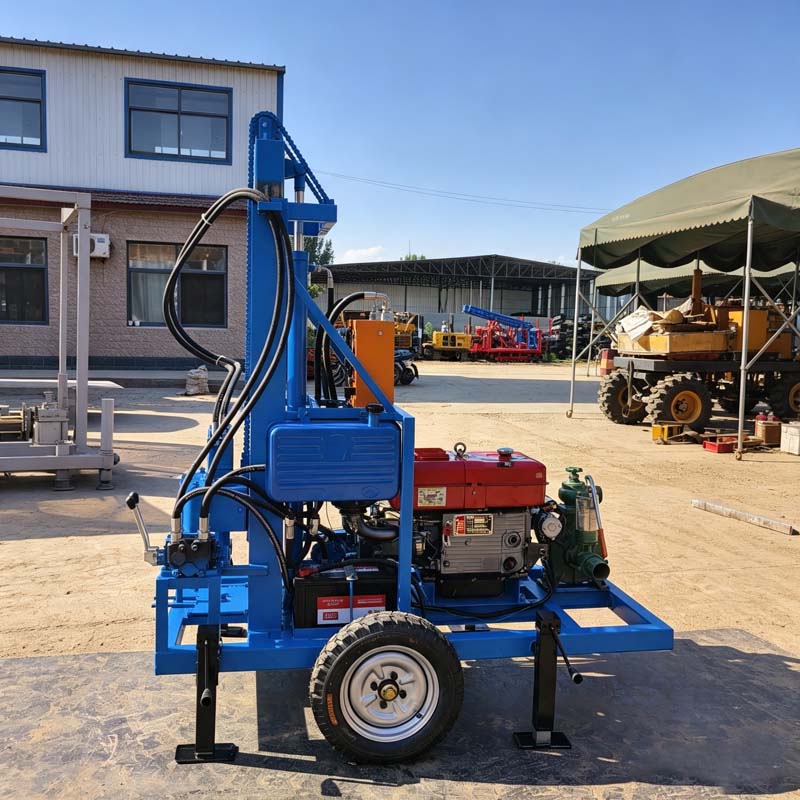

Self-Propelled Wheel Design
The trailer chassis can be towed on the road directly, no extra transport truck required.

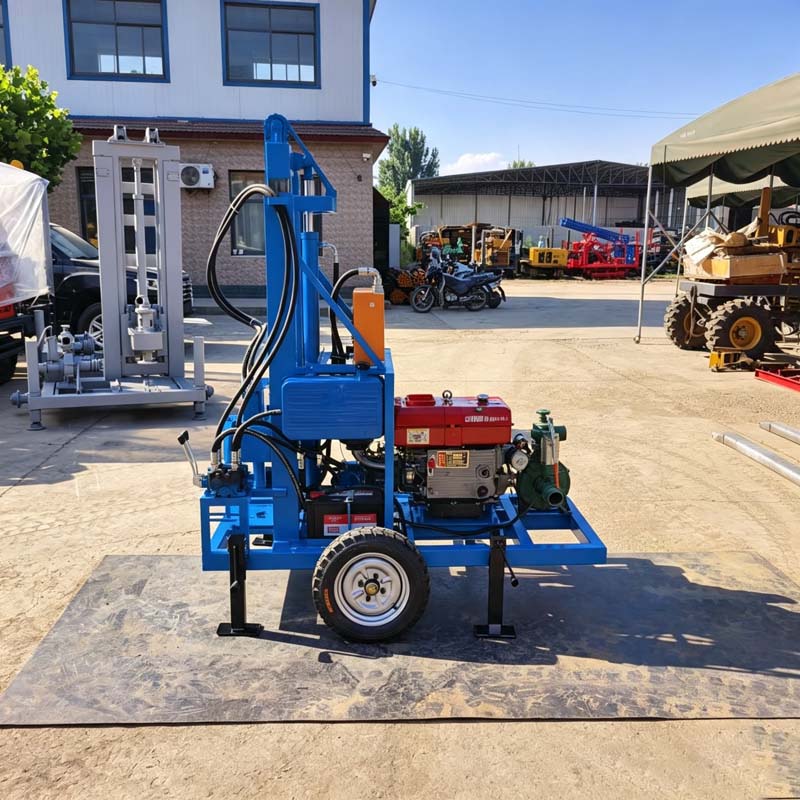

Diesel-Powered Independence
The 22HP diesel engine delivers reliable power without external electricity dependency, making this diesel-powered water well drilling machine suitable for extended continuous operations in remote off-grid field environments.

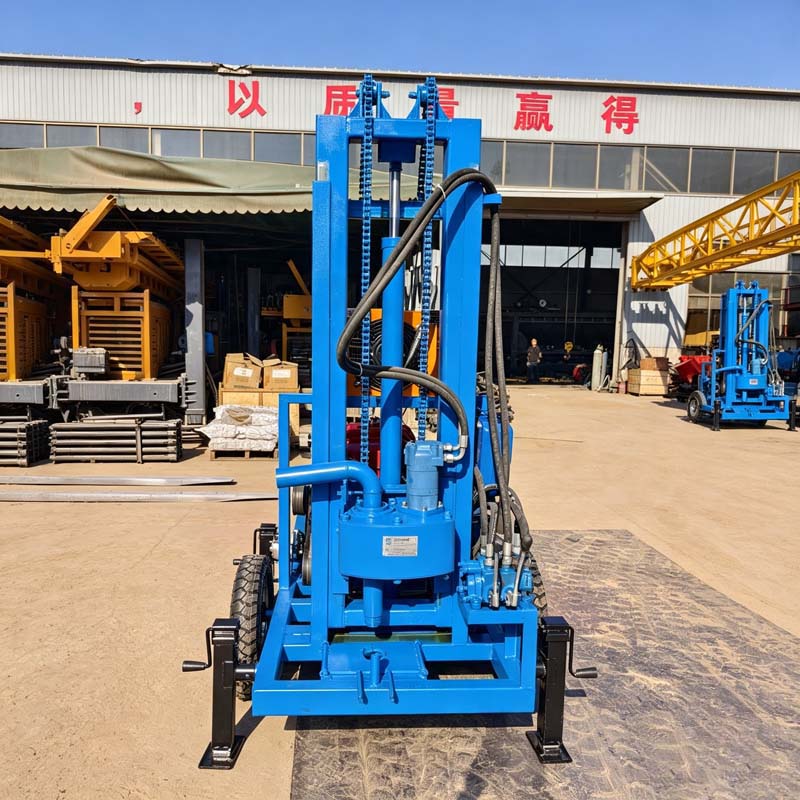

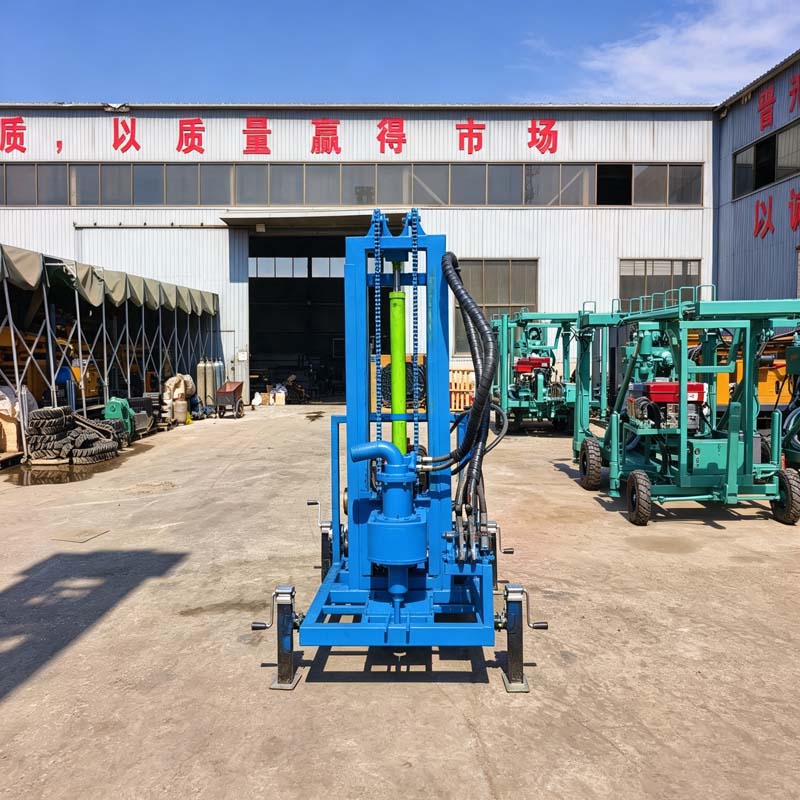

Stable Hydraulic Drive
The 400mL/r hydraulic motor provides consistent 80r/min rotary speed in both directions with 20KN lifting capacity, ensuring smooth and controlled drilling operations. This hydraulic water well drilling machine delivers reliable performance across varied geological conditions.

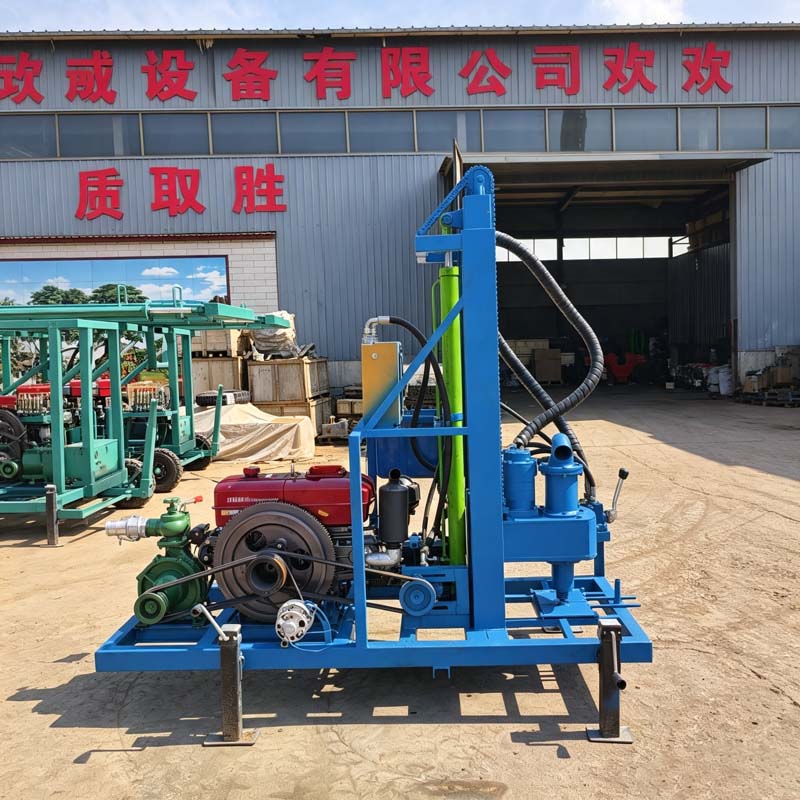

Efficient Mud Circulation
Integrated pump with 100-150m³/h flow rate and 80m head maintains optimal mud circulation for this borehole drilling equipment, effectively improving drilling speed and extending drill bit service life.
Compact Footprint
Overall dimensions of 2100×900×1700mm make this a compact water well drilling rig that allows operation in confined spaces with minimal transport and storage requirements, offering flexible maneuverability across various job sites.
Technical Parameter
Name | Parameter | Name | Parameter |
|---|
Drilling deeper | 100-200m | Pump capacity | 100-150m³/h |
Openings diameter | 100-300mm | Pump lift | 80m |
Turntable speed | Forward: 80 r/min; Reverse: 80r/min | Water pump outlet diameter | 60mm |
Lifting power | 20KN | Drilling rod diameter | 50mm |
Derrick working height | 2.8m | Drilling rod length | 1.5m |
Fluid motor | 400 mL/r | Device dimensions | 2100*900*1700m |
Diesel power | 22 HP (customizable to 35 HP) | | |
Product Uses
Here are three specific application scenarios of packaging machinery:
1.Agricultural Irrigation Wells
100-200m drilling depth meets farmland irrigation needs, with wheel-mounted design enabling flexible relocation between plots to help farmers establish reliable water sources for crop growth and agricultural productivity.
2.Rural Domestic Water Supply
100-300mm borehole diameter accommodates household or village centralized water supply requirements, with straightforward operation and easy maintenance suitable for rural construction conditions and local water needs.
3.Small-Scale Engineering Water Supply
Suitable for water well drilling at construction sites, temporary camps, and small processing facilities, with rapid deployment capability to timely meet temporary water needs and ensure project progress without delays.
FAQ
Q: What geological conditions is this rig suitable for?
A: Suitable for soil, sand, and soft rock formations. For hard rock conditions, please contact us to confirm compatibility before ordering.
Q: How is the rig transported and installed?
A: The 2100×900×1700mm frame fits standard container shipping. Simply unfold the mast on-site — no complex setup required. We provide operation manuals and remote technical support.
Q: Are drill rod spare parts easy to source?
A: The rig uses industry-standard 50mm drill rods with wide market availability. We supply full sets of original spare parts. Contact us for a detailed parts list.
Q: Can drilling depth be customized?
A: The standard model supports 100-200m depth. For deeper drilling or other custom requirements, please contact us for tailored solutions based on your specific conditions.
Q: What is the warranty period?
A: We offer [please confirm actual warranty terms] warranty coverage on core components, with lifetime technical support and spare parts supply for long-term operational stability.
