ST-200
Shitan
20261014-1
| Quantity: | |
|---|---|

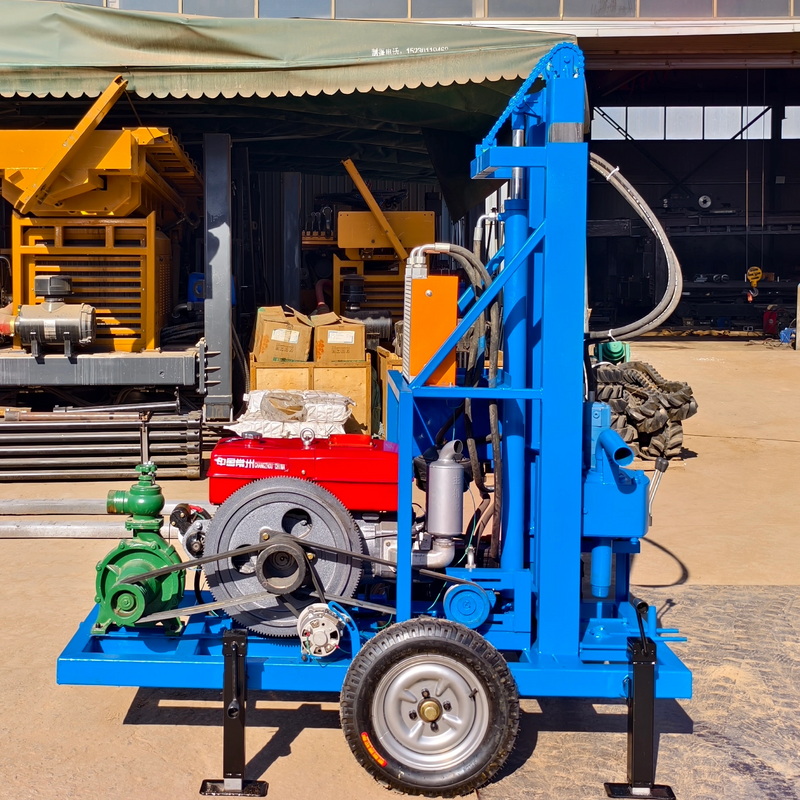

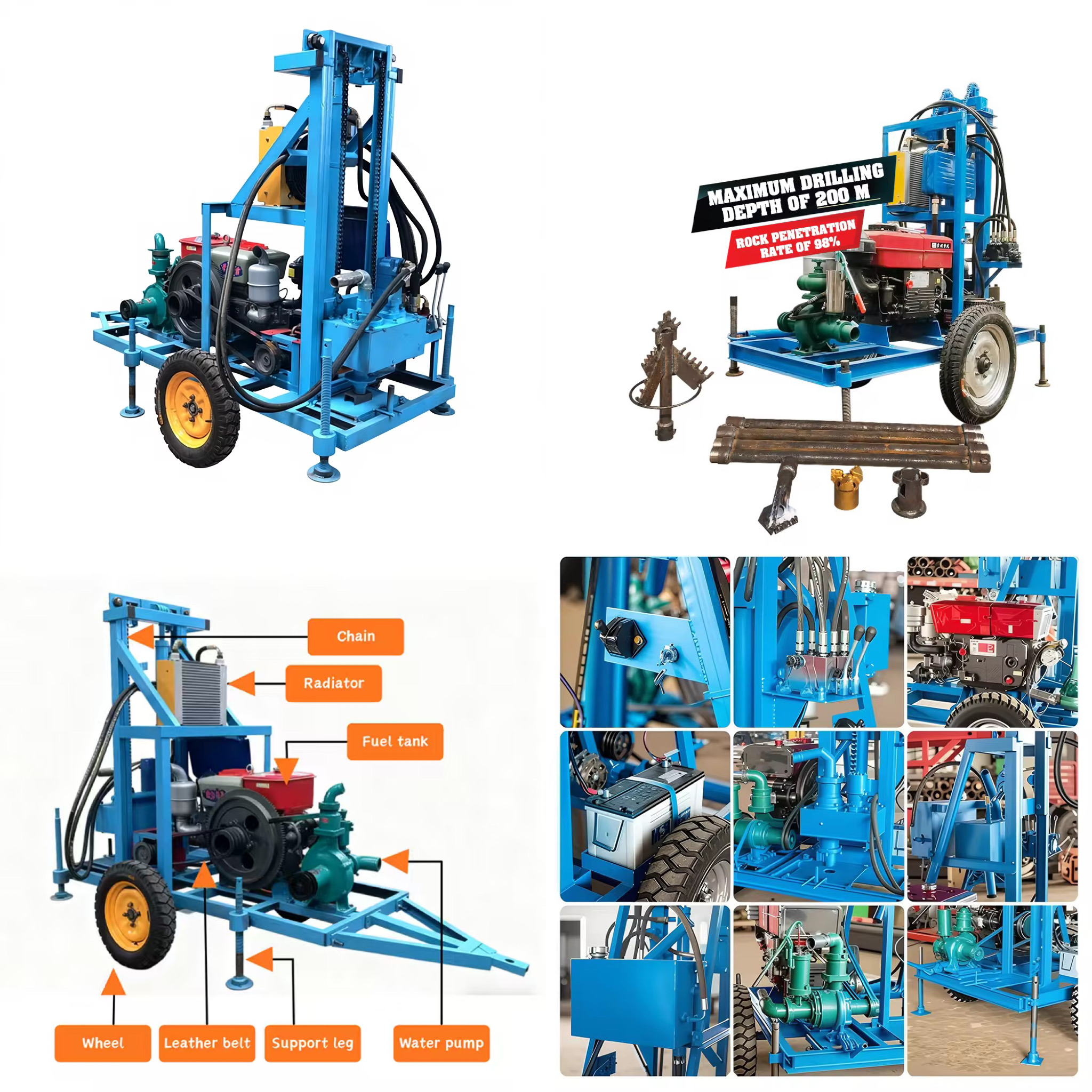

This mobile water well drilling rig is a cost-effective small-scale drilling rig designed for outdoor water well construction projects. It adopts a wheeled trailer structure, which can be easily towed to different construction sites by small tractors or pickup trucks. The whole machine is powered by a reliable Changzhou diesel engine, which provides sufficient power without relying on an external power grid, making it suitable for remote field operations where commercial electricity is unavailable. The hydraulic control system smoothly handles the lifting and feeding of the drilling rod, reducing the labor intensity of operators and improving drilling efficiency. The rig is also equipped with a dedicated fuel tank and starting battery, allowing startup and normal operation without additional auxiliary equipment. The foldable support legs stably fix the whole machine during the drilling process, ensuring the accuracy and stability of the work, while the matched water pump discharges mud and debris in time to keep construction running smoothly.
High Mobility: Wheeled trailer design with foldable support legs — easy to transport and install, and quickly moved between different job sites.
Independent Power Supply: Equipped with a Changzhou diesel engine — no need to connect to an external power grid, suitable for all kinds of outdoor field operations.
Simple Operation: Hydraulic control handle design — even novice operators can get started quickly, lowering the professional operation threshold.

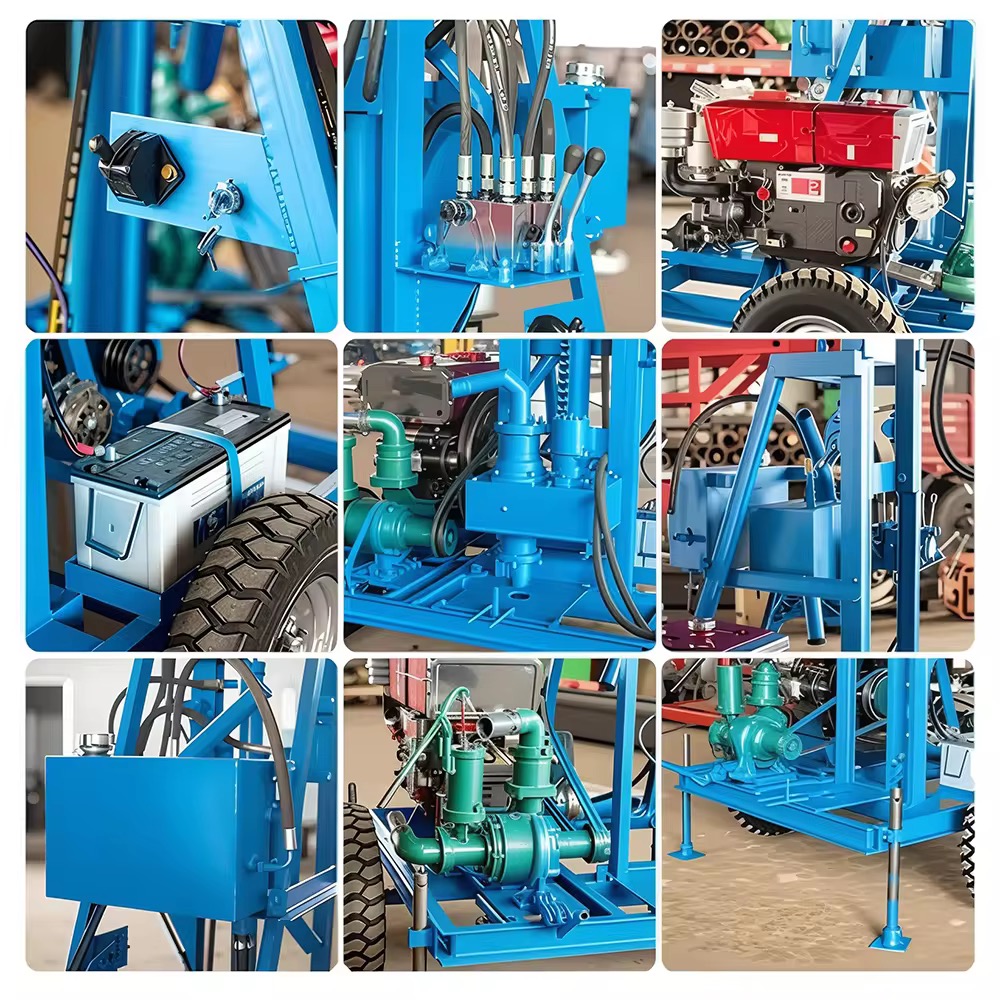

Complete Matching Configuration: Comes with a matched water pump, starting battery and necessary accessories — no need to purchase extra equipment separately.
Durable Structure: The main frame is made of high-strength thick-walled steel, sprayed with anti-rust blue paint — resistant to wear, wind and rain, with a long service life.
Household drinking water well drilling for rural families
Small farm irrigation well construction
Pasture and ranch water supply well drilling
Small engineering geological water detection drilling
Garden and green belt water supply well drilling
Parameter Item | Specific Content |
|---|---|
Drilling Method | Hydraulic Lifting Drilling |
Power Source | Changzhou Diesel Engine |
Engine Power | 22-35HP |
Maximum Drilling Depth | 200M |
Applicable Drilling Diameter | 100-300MM |
Mobility Mode | Wheeled Trailer Towing |
Matching Equipment | Centrifugal Water Pump, Starting Battery |
Overall Dimension | 2.05m*1m*1.9m |
Overall Weight | 550kg |
Q1: Do I need professional qualifications to operate this drilling rig?
A1: No. This rig is designed for small-scale civilian use, and most users can operate it independently after simple training. However, for large-scale drilling projects, please confirm your local regulatory requirements first.
Q2: What should I pay attention to when transporting this rig?
A2: Fix the support legs and drilling frame during transportation to avoid collision and damage during the transfer process. Also pay attention to the total weight of the rig so it meets the load limit of the towing vehicle.
Q3: Can this rig be used for hard rock drilling?
A3: This rig is suitable for soil layer, sand layer and partially weathered rock layer. For fully hard rock layers, you need to replace it with corresponding impact drilling tools and adjust the drilling parameters. The basic configuration cannot meet the needs of ultra-hard rock layer construction.
If you have demand for small-scale water well drilling equipment, or want a customized configuration solution for this portable diesel water well drilling rig, please contact us now! Send us your specific project requirements — such as required drilling depth and applicable strata — and we will provide the most suitable quotation and after-sales service support. Inquiry Now!
